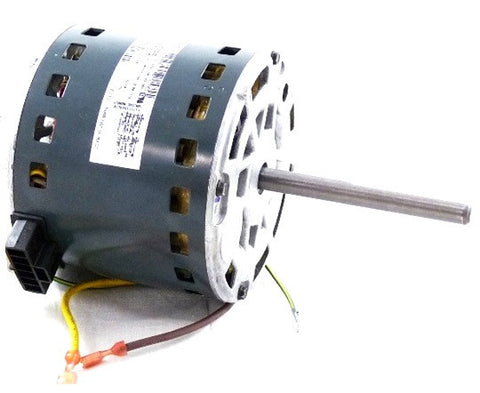

Carrier HC44AA460 Motor

For industrial HVAC performance, the Carrier HC44AA460 is a specialized 460V 1/3HP 860RPM 2-speed motor designed for demanding commercial condenser and blower applications. This OEM component features a CCW rotation (counter-clockwise) and is engineered for high-efficiency operation in Carrier, Bryant, and Payne units requiring a 460-volt power supply. With its 5.6-inch diameter frame (48 frame) and dual-speed capability, the HC44AA460 motor allows for precise airflow modulation, reducing mechanical stress on the system while maintaining optimal thermal regulation. This is a direct-drive HVAC replacement motor built with a rugged internal winding structure to withstand the high voltage and temperature fluctuations common in rooftop package units and large-scale split systems. Contractors typically utilize this model for 48DJE004-600 series equipment and other compatible industrial platforms where reliable 860 RPM blower motor performance is non-negotiable for system uptime.

• OEM Compatibility: Precision-engineered for a drop-in HC44AA460 replacement in Carrier, Bryant, and Payne commercial units.
• Dual-Speed Logic: Features 2-speed functionality to accommodate varying load requirements and improve energy efficiency.
• High-Voltage Rating: Rated specifically for 460V operation, ensuring compatibility with industrial three-phase power standards.
• Reliable Thermal Protection: Built to handle the high-static environments of commercial condenser fan motor and blower applications.

• What is the rotation for this motor? The HC44AA460 is a CCW (Lead End) rotation motor. Always verify your existing fan blade or blower wheel pitch before installation.
• Can this replace a single-speed motor? Yes, provided the voltage, horsepower, and frame size match, though the secondary speed lead must be properly capped if not in use.
• Is this an OEM or aftermarket part? This is a genuine Carrier OEM motor, ensuring exact factory specifications for shaft length and mounting bolt patterns.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
