Carrier HC44AE209 Motor

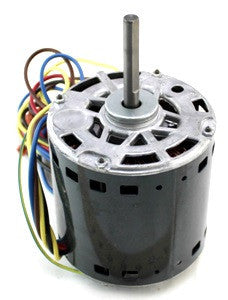

The Carrier HC44AE209 is a heavy-duty, 3-speed PSC (Permanent Split Capacitor) blower motor engineered for high-static residential and commercial HVAC applications. Operating at 208-230V and single-phase power, this 3/4 HP motor delivers a consistent 1075 RPM to maintain optimal airflow across evaporator coils. As a genuine OEM replacement motor, it features a counter-clockwise (CCW) rotation (lead end) and utilizes a 15 MFD/370V capacitor for reliable start-up torque. The 39-frame design, constructed with a rolled steel housing and aluminum flanges, ensures superior heat dissipation and structural integrity in continuous-duty environments. This direct drive motor includes a 1/2-inch diameter shaft and is thermally protected to prevent winding failure during high-demand cycles. Designed to fit a wide range of Carrier, Bryant, and Payne air handlers and packaged units, the HC44AE209 is the standard for technicians requiring precise OEM specifications and long-term mechanical reliability.

• Multi-Speed Versatility: Features a 3-speed design to allow for fine-tuned CFM adjustments based on specific system static pressure requirements.
• Industrial-Grade Build: Equipped with ball bearings and a thermally protected Class B insulation system for high-temperature resilience.
• OEM Compatibility: Exact electrical and mechanical match for Carrier blower motor assemblies, eliminating the need for mounting modifications or bracket adjustments.
• Efficient Airflow Delivery: The 1075 RPM output ensures proper static pressure performance in 4-ton and 5-ton HVAC configurations.

What capacitor is required for the HC44AE209?
This motor requires a 15 MFD / 370 VAC capacitor. Using an incorrectly rated capacitor will lead to overheating and premature winding failure.

Is this motor reversible?
No, this specific model is designed for counter-clockwise (CCW) rotation from the lead end. Verify your blower wheel rotation before installation.

Can I use this motor to replace a 1/2 HP motor?
While a 3/4 HP motor provides more power, you must ensure the physical frame size (Frame 39) and amperage draw (3.5A) are compatible with your existing control board and housing.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
