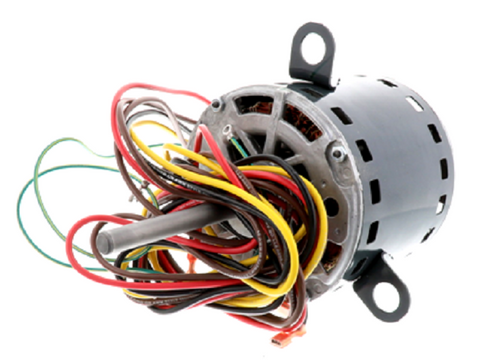

Carrier HC45CE211 Motor

The Carrier HC45CE211 is a high-torque 3/4 HP HVAC blower motor designed for heavy-duty air circulation within residential and light commercial air handlers. Operating on a 208/230V single-phase power supply, this PSC blower motor delivers a consistent 1075 RPM to maintain static pressure requirements across the evaporator coil. Engineered with a CCW (Counter-Clockwise) rotation as viewed from the lead end, it serves as a precise OEM replacement motor for Carrier, Bryant, and Day & Night equipment. The multi-speed capability allows for fine-tuning airflow to match the tonnage of the system, ensuring optimal heat transfer during both heating and cooling cycles. For contractors, this Factory Authorized Part provides a reliable drop-in solution that eliminates the mounting and wiring headaches often associated with "universal" aftermarket alternatives.

• Direct OEM Fit: Ensures exact physical dimensions and mounting bolt patterns, significantly reducing labor time during HVAC motor replacement.
• Optimized Airflow: The 3/4 HP 1075 RPM rating is calibrated specifically for Carrier blower housings to prevent motor overheating and restricted airflow.
• Durable Construction: Features high-grade internal bearings and insulation classes designed to withstand the high-temperature environments of furnace cabinets.
• Multi-Speed Versatility: Allows for independent speed tapping for cooling, heating, and continuous fan modes to improve dehumidification and comfort.

What is the correct rotation for this motor?
The Carrier HC45CE211 is a CCW rotation motor. Ensure you verify the rotation of the existing blower wheel from the lead end before installation to prevent reversed airflow.

Does this motor require a new run capacitor?
Yes, as a veteran technician knows, always install a fresh run capacitor (verify MFD rating on the nameplate) when replacing an HVAC blower motor to prevent premature winding failure.

Can I use this motor to replace a lower horsepower unit?
While a 3/4 HP motor can sometimes replace a 1/2 HP unit in a pinch, it is critical to confirm that the physical frame size and amp draw do not exceed the circuit's capacity or the blower wheel's mechanical limits.

Item is Non-Cancelable / Non-Returnable

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
