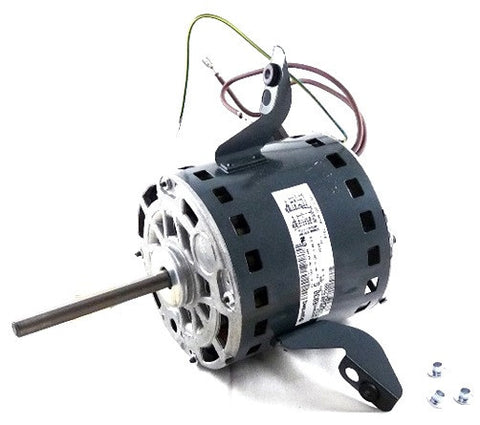

Carrier HC45CE230 Motor

The Carrier HC45CE230 Variable Speed Motor is a high-performance 3/4 HP HVAC replacement motor designed for precise airflow management in residential and light commercial air handlers and furnaces. Engineering specifications for this ECM blower motor include a multi-voltage capability supporting 115V, 208-230V, and 277V at 60Hz, allowing for versatile field integration across diverse electrical infrastructures. Operating at a nominal 1050 RPM with a CCW (Counter-Clockwise) rotation, this 48-frame motor utilizes advanced induction logic to maintain consistent static pressure and system balance, which is critical for protecting the heat exchanger and optimizing evaporator coil heat transfer.

For contractors, the HC45CE230 serves as a factory-authorized replacement motor that ensures drop-in compatibility with 45T series units. Its 4.7A full-load draw and single-phase 1050 RPM motor design provide the torque necessary for high-static applications while reducing technical overhead during installation. By utilizing this original OEM Carrier motor, technicians can maintain the intended CFM delivery and acoustic profile of the original equipment, preventing the common resonance issues associated with generic universal alternatives.

• Multi-Voltage Application: Operational range covering 115/208-230/277 VAC for maximum site adaptability.
• Optimized Airflow: Sustains precise 1050 RPM speeds for better humidity control and filtration efficiency.
• Technical Integrity: Direct replacement ensures correct CCW rotation and 48-frame mounting alignment without bracket modification.
• Energy Efficiency: High-efficiency ECM design reduces amp draw compared to standard PSC motors.

Is the Carrier HC45CE230 compatible with 115V systems?
Yes, this motor is rated for 115V, 208-230V, and 277V, making it suitable for a variety of power configurations.

What is the rotation direction for this model?
The HC45CE230 is configured for Counter-Clockwise (CCW) rotation when viewed from the lead end.

Can this motor replace a standard 3/4 HP PSC motor?
While the horsepower matches, this is a variable speed motor; compatibility depends on the system controller's ability to provide the correct control signal.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
