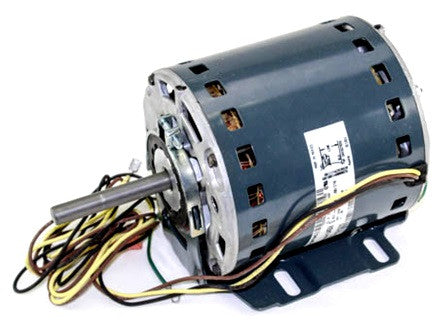

Carrier HC52EE575 Indoor Motor

The Carrier HC52EE575 Indoor Motor is a high-efficiency direct drive blower motor designed specifically for Carrier, Bryant, and Payne air handlers and furnaces. Operating at 460V and 1/2 HP, this single-phase powerhead features a 1075 RPM rating and three-speed capability, allowing technicians to fine-tune static pressure across varying ductwork configurations. Built with a 48-frame diameter and an Odesk (Open Drip-Proof) enclosure, it ensures optimal heat dissipation during continuous operation. This OEM replacement motor replaces obsolete units such as the HC52EE511, maintaining the original equipment’s blower curve and electrical integrity. When replacing this permanent split capacitor motor, ensure the capacitor is sized correctly to prevent premature winding failure and to maintain the specified locked rotor amps. The 4.88-inch shaft length and resilient mounting options make this unit a drop-in solution for critical HVAC blower motor repairs where reliability in high-voltage commercial or industrial applications is non-negotiable.

Key Benefits

• OEM Precision: Guaranteed direct fit replacement for Carrier-family equipment, ensuring correct shaft alignment and mounting hole placement.
• Multi-Speed Versatility: Features 3-speed taps to optimize airflow and CFM requirements based on the specific system load.
• Thermal Protection: Internally protected against overheating to safeguard the windings during high-demand cooling or heating cycles.
• Quiet Operation: Precision-balanced rotor and sleeve bearings reduce vibration and decibel levels within the air handler cabinet.

Common Questions

What capacitor does the HC52EE575 require?
This motor typically requires a 7.5 MFD / 370V run capacitor. Always verify the specific microfarad rating on the motor nameplate before installation to prevent overheating.

Can I use this motor on a 208-230V system?
No, this is a 460V-rated motor. Applying lower voltage will result in insufficient torque and motor failure. Use only with dedicated 460V single-phase power supplies.

Is the shaft size compatible with standard blowers?
Yes, it features a standard 1/2-inch diameter shaft with a flat side for secure blower wheel hub attachment.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
