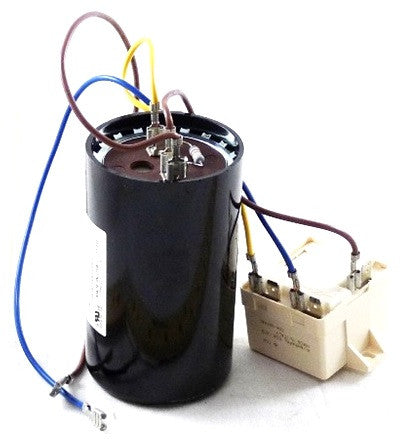

Carrier HC95DA700 Relay Assembly

The Carrier HC95DA700 is an OEM capacitor start relay assembly engineered to provide the high-torque surge required for single-phase compressor startup in residential and commercial HVAC systems. Designed for Carrier, Bryant, and Payne units, this Factory Authorized Part integrates a precision-tuned relay with a high-capacitance start capacitor—typically rated at 238-262 uF and 330 VAC—to ensure a reliable motor start even under high head pressures. By shifting the motor’s phase and increasing locked-rotor torque, this start kit prevents stalling and reduces the thermal stress on blower motors and HVAC compressors during the initial power-up phase. For service technicians, utilizing this original equipment manufacturer assembly ensures drop-in compatibility and maintains the hydraulic and electrical integrity of the system without the need for field-modifying universal components. This heavy-duty start relay and capacitor assembly is critical for restoring peak efficiency to older or high-demand condensing units.

• Enhanced Starting Torque: Provides the necessary electrical boost to overcome high internal pressures during the compressor startup cycle.
• OEM Precision: Guaranteed Carrier HC95DA700 fitment eliminates wiring guesswork and ensures alignment with factory electrical specifications.
• System Protection: Reduces the duration of locked-rotor amperage, protecting motor windings from overheating and premature failure.
• Rugged Construction: Built to withstand the harsh environments of outdoor HVAC condensing units and high-vibration applications.

When should the HC95DA700 be used over a universal hard start kit?
As a veteran technician knows, Factory Authorized Parts like the HC95DA700 are calibrated to the specific inductive load of Carrier compressors (replacing older numbers like HC95DA257). Unlike universal kits, this assembly ensures the start winding is dropped out at the exact millisecond the motor reaches sufficient back-EMF, preventing winding damage.

What are the signs of a failing capacitor start relay assembly?
Common indicators include a humming sound from the compressor without rotation, tripped circuit breakers upon startup, or the motor attempting to cycle but failing to reach run speed. Replacing a weak assembly with a genuine Carrier relay assembly restores the quick-start capability needed to prevent motor burnout.

Is this assembly compatible with residential blower motors?
Yes, the HC95DA700 is designed for versatility across various Carrier-branded blower and compressor models requiring a capacitor start/induction run or capacitor start/capacitor run configuration.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
