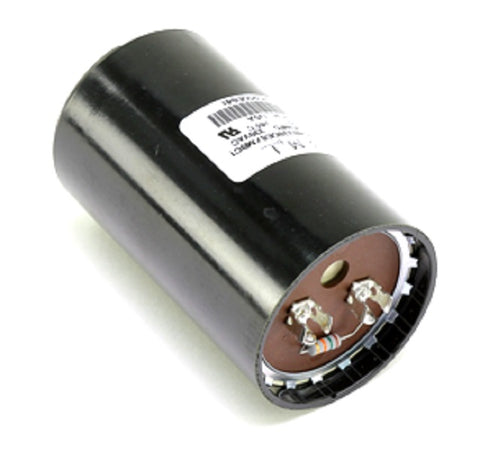

Carrier HC95DE041 Start Capacitor

The Carrier HC95DE041 Start Capacitor is a high-torque OEM component designed specifically for single-phase HVACR motors and compressors. Engineered for demanding startup cycles, this heavy-duty 238-262 Microfarad (MFD) capacitor provides the essential electrical boost required to overcome head pressure in high-static applications. Rated for 330Vac and 50/60Hz, it serves as a direct drop-in replacement for failed units in Carrier, Bryant, and Payne systems, ensuring the motor reaches full operational speed within the critical first quarter-second of the start cycle.

Built with a rugged, round moisture-resistant case, the HC95DE041 is optimized for longevity in harsh environments where temperature fluctuations are common. Technical specifications include a maximum operating temperature of 65°C, providing stability during high-ambient summer loads. This HVAC start capacitor is vital for protecting motor windings from overheating and potential burnouts caused by locked-rotor amperage. As an OEM Carrier replacement part, it guarantees precise adherence to factory tolerances for capacitance and voltage stability, preventing the premature wear associated with universal "one-size-fits-all" alternatives.

• Optimal Startup Torque: Delivers a consistent 238-262 MFD range to ensure reliable compressor ignition even under high load.
• Exact OEM Fitment: Eliminates mounting issues and ensures compatibility with existing wiring harnesses in Carrier residential systems.
• High Voltage Threshold: The 330V rating provides a robust safety margin against voltage surges and fluctuations.
• Durable Construction: Made in the USA with industrial-grade materials to withstand vibration and frequent cycling.

Can I use a capacitor with a higher MFD rating? While a slightly higher voltage rating is often acceptable, the capacitance (MFD) must match your system’s requirements. A rating too far outside the 238-262 range can cause excessive current draw, leading to motor winding damage or potential relay failure.

Why did my original start capacitor fail? Most start capacitors fail due to overheating from excessive cycling, a faulty potential relay that keeps the capacitor in the circuit too long, or extreme ambient temperatures. Always check your relay and start windings when replacing this part.

Does this unit include a bleed resistor? Many HVAC technician parts like the HC95DE041 are pre-equipped with a bleed resistor to safely discharge stored energy; however, standard practice is to verify and, if necessary, install a 15,000-18,000 ohm resistor to prevent arcing across relay contacts.
