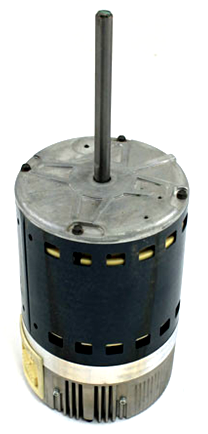

Carrier HD46AE122 Motor

For veteran contractors looking to restore precise airflow control, the Carrier HD46AE122 is a high-performance 3/4 HP variable speed motor designed for direct OEM replacement in Carrier, Bryant, and Payne air handlers and furnaces. Engineering specifications for this 48 frame blower motor include a 115V single-phase power requirement, delivering a consistent 1050 RPM with a counter-clockwise (CCW) rotation. Utilizing advanced ECM 5.0 Eon technology, this motor assembly provides superior torque and programmable airflow ramping, which is critical for maintaining static pressure and system efficacy in demanding residential or light commercial environments. The Carrier replacement motor features a standard 1/2-inch shaft diameter and 5-pin connector housing, ensuring a drop-in fit for technicians dealing with aging HVAC blower motors. By choosing this genuine OEM HVAC motor, you avoid the common calibration issues associated with generic universal alternatives, ensuring the control board’s serial communication remains synchronized for optimal dehumidification and heating cycles.

• Direct OEM Compatibility: Specifically engineered for Carrier, Bryant, and Payne systems, eliminating the need for mounting bracket modifications or wiring harnesses.
• Enhanced Efficiency: The variable speed ECM design reduces energy consumption by adjusting output based on real-time system demand.
• Low Noise Profile: Balanced rotor construction and precise tolerances minimize vibration and operational noise in residential ductwork.
• Industrial Strength Housing: Built on a standard 48 frame chassis with robust materials to withstand high-duty cycles and frequent starts.

Is the HD46AE122 compatible with all Carrier 3/4 HP systems?
While it fits many 48-frame applications, always verify the ECM version (5.0 Eon) and pin configuration against your existing motor's nameplate to ensure control board communication.

Can I use this motor to replace the older HD46AE120 model?
Yes, the HD46AE122 is the current manufacturer-specified replacement for the discontinued HD46AE120 and several other legacy ICP part numbers.

Does this motor include the control module (end cap)?
Yes, this is a complete motor assembly including the integrated ECM controller required for variable speed functionality.
