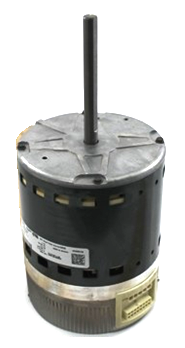

Carrier HD46AR130 Blower Motor

The Carrier HD46AR130 Blower Motor is a professional-grade 3/4 HP ECM motor designed for direct-drive applications in high-efficiency Carrier, Bryant, and Payne air handlers and furnaces. As a genuine OEM replacement part, this ECM blower motor provides the precise torque and variable speed capabilities required to maintain factory-spec airflow and static pressure. This model serves as the HD46AR130 direct replacement for HD46AE134, ensuring a drop-in fit without the need for mounting modifications or bracket fabrication. Built with an EON 5.0 motor architecture, it operates on a 115V single-phase circuit, delivering a rated 1050 RPM for consistent climate control. Contractors should prioritize this factory authorized part to ensure full communication with the existing integrated furnace control (IFC) and to prevent the common resonance issues associated with universal alternatives.

• Direct OEM Match: Engineering-aligned HD46AR130 direct replacement for HD46AE134 ensures proper belly band fit and shaft alignment.
• High-Efficiency ECM Technology: 3/4 HP ECM motor design reduces electrical consumption and allows for optimized HVAC airflow across various static pressures.
• Quiet Operation: Precision-balanced internals and EON 5.0 drive logic minimize vibration and mechanical harmonics.
• Plug-and-Play Integration: Features the standard 5-pin power and 16-pin signal connectors for seamless Carrier blower motor replacement.

Is the HD46AR130 compatible with my older HD46AE134 motor?
Yes, the Carrier HD46AR130 is the manufacturer-specified successor and direct replacement for the discontinued HD46AE134 blower motor.

Does this motor include the control module?
This assembly includes both the ECM motor and the pre-programmed motor control module, intended for immediate installation in compatible 48XPN and 58 series units.

Why is my blower motor humming but not spinning?
In ECM blower motors, humming without rotation often indicates a failed motor control module or a seized bearing; always verify that the blower wheel spins freely before replacing the assembly.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
