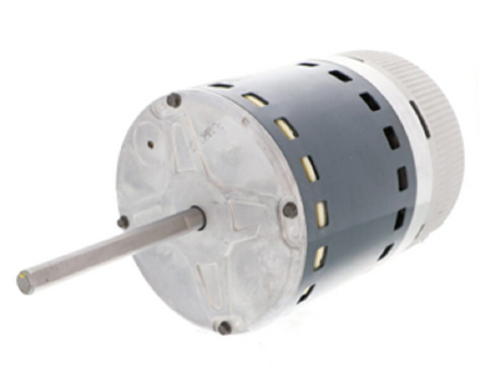

Carrier HD52AE157 Motor

The Carrier HD52AE157 Motor is a high-performance 1 HP blower motor designed for heavy-duty HVAC applications. Operating at 120/240V and a nominal 1050 RPM, this motor provides the torque necessary for consistent airflow in large-scale residential and commercial air handlers. As a genuine OEM replacement, the HD52AE157 is the direct engineering successor to the Carrier HD52AE121, ensuring a drop-in fit without the need for mounting modifications or bracket fabrication. Built on a standard 48 Frame, it supports horizontal (HOR) mounting and features a counter-clockwise (CCW) rotation, making it a versatile choice for technicians servicing Bryant, Payne, and Carrier equipment.

This ECM blower motor utilizes electronically commutated technology to maintain precise static pressure balance, which is critical for system efficiency and preventing heat exchanger fatigue. With a 0.50-inch shaft diameter and an electronically protected design, it is engineered to withstand the thermal demands of high-cycle environments. When conducting an HVAC motor replacement, verifying the 16-pin or specific control harness compatibility is essential for restoring variable speed functionality.

• Direct OEM Replacement: Replaces the Carrier HD52AE121 with exact factory specifications for voltage and mounting.
• Optimal Airflow Control: High-torque 1 Horsepower output ensures proper CFM delivery across the coil.
• Enhanced Durability: The 48 Frame construction with electronic protection prevents common failures due to overheating.
• Dual Voltage Versatility: Compatible with both 120V and 240V configurations for broader field application.

Is the HD52AE157 backward compatible with older Carrier models?
Yes, this unit is the designated direct replacement for the HD52AE121. Always verify the frame size and rotation before installation.

Can this motor be mounted vertically?
This specific model is rated for HOR (Horizontal) mounting. Installing it in an unapproved orientation may lead to premature bearing wear.

How do I verify the rotation?
The motor is set for Counter Clockwise (CCW) rotation. Ensure your fan blade pitch matches this direction to avoid reverse airflow and high amp draw.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
