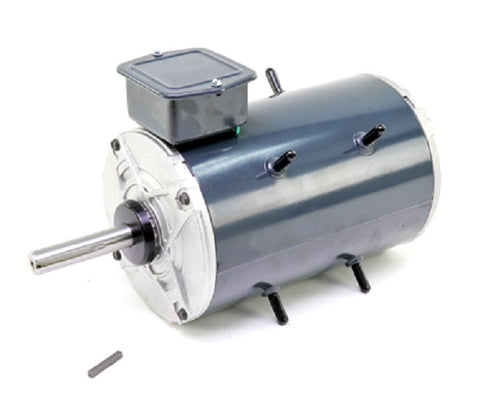

Carrier HD56AE460 Motor

The Carrier HD56AE460 is a high-performance three-phase condenser fan motor designed for heavy-duty HVACR applications. Operating at a nominal 850 RPM, this 1-HP motor supports dual-voltage configurations of 208-230/460V, providing versatile integration for commercial rooftop units and large-scale split systems. Built with a NEMA 56Y frame, it features an open drip-proof (ODP) enclosure to facilitate optimal heat dissipation during continuous operation. The ball-bearing design ensures minimal friction and long-term shaft stability under high static pressure. As a direct OEM replacement motor, the HD56AE460 maintains precise electrical load requirements, preventing premature contactor wear and protecting the compressor's thermal equilibrium. Technicians utilize this 60Hz inducer motor for its reliable torque profile and ability to maintain consistent airflow across condenser coils, ensuring system head pressures remain within specified tolerances during peak ambient conditions.

• Dual-Voltage Versatility: Supports 208-230V and 460V 3-phase power supplies, reducing truck stock requirements.
• Low-Speed Efficiency: The 850 RPM rating provides quiet, high-torque performance for critical cooling stages.
• OEM Precision: Guaranteed physical fit and electrical compatibility with Carrier, Bryant, and Payne commercial equipment.
• Industrial Durability: Features heavy-duty internal windings and a robust frame designed for 24/7 environmental exposure.

What is the frame size and shaft dimension for the HD56AE460?
This motor utilizes a standard 56Y frame. It is essential to verify the shaft diameter and length against the existing fan blade hub to ensure proper seating and pitch alignment.

Can this motor be used with a Variable Frequency Drive (VFD)?
While this is a standard three-phase motor, it is optimized for constant speed application. Constant cycling via VFD should be cross-referenced with the specific drive's harmonic output to ensure winding heat is managed.

Does the HD56AE460 require external capacitors?
No, as a three-phase motor, it does not require a start or run capacitor, simplifying the wiring circuit and reducing potential failure points in the electrical cabinet.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
