Carrier HD64FK652 Motor

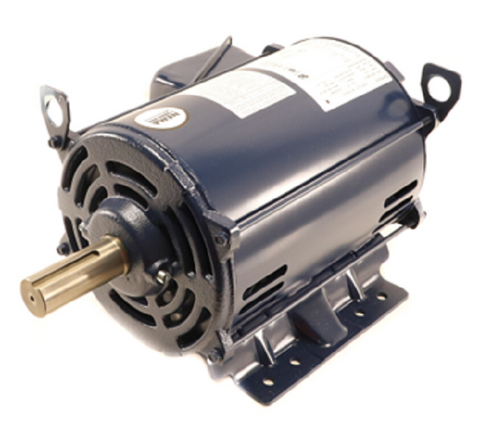

The Carrier HD64FK652 is a high-performance 10 HP commercial blower motor designed for heavy-duty HVAC applications. Operating at a 1755 RPM base speed, this three-phase induction motor supports dual-voltage configurations of 230/460V. Built to handle the rigorous demands of large-scale air handling units and rooftop systems, it features a robust frame design that ensures stability and heat dissipation under continuous load. As the direct OEM replacement motor for legacy parts HD64FK651 and HD680016, it maintains exacting tolerances for shaft alignment and mounting geometry, reducing mechanical stress on the drive assembly. Technicians can rely on its high torque output and NEMA premium efficiency standards to restore system airflow to original manufacturer specifications while minimizing electrical consumption.

• Direct OEM Compatibility: Engineered as a drop-in replacement for Carrier, Bryant, and Carlyle HD64FK651 and HD680016 models.
• Dual-Voltage Versatility: Configurable for both 230V and 460V 3-phase power supplies, providing flexibility across various job site electrical requirements.
• Industrial Build Quality: High-grade insulation and precision balanced rotors ensure long-term reliability in high-static pressure environments.
• Optimized Performance: The 1755 RPM synchronous speed provides the necessary velocity for large commercial blower wheels and drive belts.

Common Questions Regarding the HD64FK652

Does this motor require a specific starter or VFD?
This 10 HP 3-phase motor is compatible with standard motor starters and variable frequency drives, provided the VFD parameters are programmed to match the 230/460V nameplate amperage.

Can I use this motor to replace a different horsepower rating?
It is critical to match the 10 HP rating and 1755 RPM exactly to avoid overloading the electrical circuit or damaging the blower assembly. Always verify the frame size and shaft diameter before installation.

This item must be shipped via trucking. Please contact us for a freight quote.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
