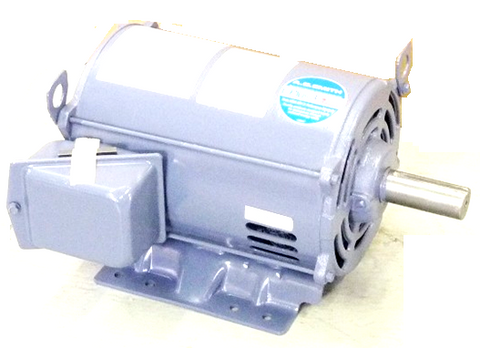

Carrier HD680014 Motor

The Carrier HD680014 is a heavy-duty 7.5 HP belt drive blower motor designed for high-demand commercial HVAC applications. Engineered for three-phase (3 PH) power systems, this Factory Authorized Parts motor operates at 208-230/460V and delivers a consistent 1800 RPM. Built on a 215T frame with a 1.125-inch shaft diameter, it serves as the direct OEM replacement motor for Carrier and Bryant equipment, specifically replacing the HD62FK652. This induction motor is vital for maintaining proper static pressure and CFM delivery in large-scale packaged rooftop units (RTU) and air handlers. Its robust construction features sealed ball bearings and high-efficiency windings to handle the stresses of continuous belt-drive operation. For technicians performing a motor swap, ensuring correct phase rotation and sheave alignment is critical to prevent premature belt wear or amperage spikes. This unit is built to withstand the rigorous duty cycles of industrial air movement while providing the precise indoor blower motor performance required for climate control stability.

This item must ship via truck. Please contact us for freight quote.

• Direct OEM Fit: Drop-in replacement for Carrier HD680014 and HD62FK652, eliminating the need for mounting modifications during field service.
• Multi-Voltage Versatility: Dual-voltage rating (230/460 VAC) allows for installation across various commercial power configurations.
• Industrial Durability: The 215T NEMA frame and high-torque 7.5 horsepower rating ensure reliable performance in high-static environments.
• Optimized Efficiency: Engineered to provide 1760-1800 RPM, maintaining the precise air volume necessary for large commercial evaporators.

What is the shaft size for the HD680014?
This motor features a 1-1/8" (1.125") shaft diameter with a length of approximately 3.38", making it compatible with standard heavy-duty pulleys and sheaves.

Is this a single-phase or three-phase motor?
The Carrier HD680014 is a 3-phase motor. It is not compatible with single-phase residential power and requires a 3-pole contactor.

Can I use this motor to replace the HD62FK652?
Yes, this is the Factory Authorized replacement part specifically designated to replace the HD62FK652 in Carrier, Bryant, and Payne equipment.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
