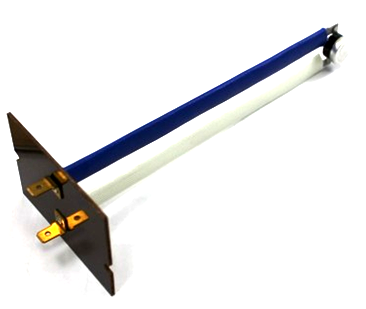

Carrier HH12ZA218 Limit Switch

The Carrier HH12ZA218 Limit Switch is a critical safety component designed for high-efficiency residential heating systems, specifically engineered for furnace limit switch replacement in Carrier, Bryant, and Payne units. This OEM replacement part functions as a normally closed switch that breaks the electrical circuit when the internal plenum temperature exceeds the 180-220F safety threshold. As an auto reset limit switch, it automatically re-engages once temperatures return to safe operating levels, preventing recursive furnace short cycling caused by restricted airflow or blower failure. Built for precision and long-term durability, the HH12ZA218 ensures the heat exchanger does not exceed its thermal rating, protecting the equipment from stress cracks and potential fire hazards. For contractors, this high-limit safety switch offers a direct-fit solution with standardized mounting, ensuring seamless integration into the existing control string. Maintaining proper oven and furnace safety depends on the rapid response time provided by this factory-authorized part.

• Precise Thermal Protection: Engineered to trip within the 180-220 degree Fahrenheit range to prevent catastrophic overheating of the heat exchanger.
• Automatic Reset Functionality: Minimizes system downtime by automatically restoring power to the heating sequence once safe ambient temperatures are restored.
• Broad Compatibility: Serves as the primary Carrier furnace part for numerous 58STA and PG8JAA gas furnace models.
• Rugged Component Construction: Designed to withstand the high-cycle demands of modern HVAC equipment without premature calibration drift.

• What causes this limit switch to trip repeatedly? Frequent tripping is usually indicative of restricted airflow. Inspect for a clogged air filter, blocked return ducts, or a malfunctioning blower motor that is failing to move sufficient CFM across the heat exchanger.
• How do I verify if the HH12ZA218 is faulty? Use a multimeter to check for continuity across the terminals. Since this is a normally closed (NC) switch, you should find zero resistance at room temperature; an open circuit while cool indicates the switch has failed.
• Is this switch compatible with 80% and 90% AFUE furnaces? Yes, this specific temperature profile is common across a wide range of Carrier-produced gas furnace platforms. Always verify the temperature stamping on the old bracket before installation.
