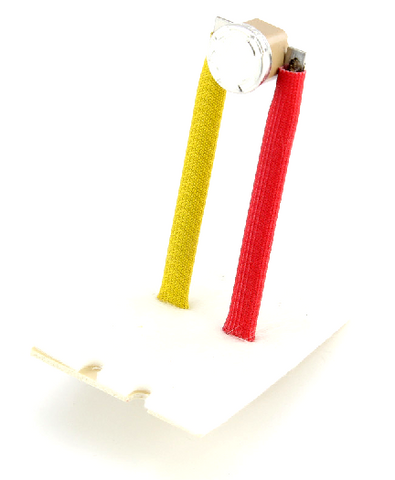

Carrier HH12ZB280 Limit Switch

The Carrier HH12ZB280 Limit Switch is a critical safety component designed for high-temperature monitoring in Carrier, Bryant, and Payne gas furnaces and residential heating systems. This genuine OEM HVAC replacement part is engineered to open the electrical circuit when internal plenum temperatures exceed the factory-defined safety threshold of 280°F. It features a 40°F differential, ensuring the system remains deactivated until temperatures drop to a safe 240°F, preventing heat exchanger damage and potential fire hazards.

Built with a 3-inch insertion depth and three insulated lead wires, this furnace high limit switch provides reliable thermal protection in harsh environments. It serves as a direct upgrade or replacement for legacy part numbers such as HH12ZA280 and is compatible with various 59SC and 59SP series models. For technicians troubleshooting furnace code 33 or short-cycling issues, this switch offers the precise calibration required to maintain system integrity without premature tripping.

• Thermal Protection: Prevents heat exchanger cracking by enforcing a strict 280°F cutout limit.
• OEM Compatibility: Designed specifically for Carrier gas furnace applications, ensuring exact fit and response time.
• Automatic Reset: Features a 40°F differential for automated system recovery once safe temperatures are reached.
• Durable Construction: High-quality bi-metal sensing element designed for high-cycle reliability in residential HVAC units.

What causes this limit switch to trip frequently?
Repeated tripping is often caused by restricted airflow, such as a clogged HVAC air filter, blocked return ducts, or a failing blower motor, rather than a fault in the switch itself.

Can the HH12ZB280 be used in electric furnaces?
While primary for gas units, it is rated for various heating applications. Always verify the specific temperature cutout requirements for your model before installation.

How do I test if the limit switch is defective?
Using a multimeter, check for continuity across the terminals. If the switch remains open at room temperature, the internal bi-metal disc has likely failed and requires immediate replacement.
