Carrier HH18HA141 Limit Switch

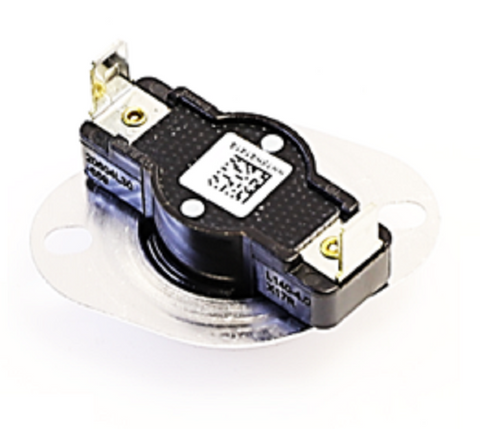

The Carrier HH18HA141 Limit Switch is a critical OEM safety component engineered for precision thermal monitoring in Carrier, Bryant, and Payne gas furnaces. As a normally closed SPST disc-style switch, it serves as the primary high-limit defense against heat exchanger overheating. This L140-40F limit switch is designed to automatically open the electrical circuit when internal plenum temperatures reach 140°F, effectively shutting down the gas valve to prevent equipment damage. Once the system cools to 100°F, the HH18HA141 features an auto-reset function that re-establishes the circuit for continued operation.

For technicians troubleshooting furnace short cycling or limit switch error codes, this 10/5 FLA rated component ensures a drop-in OEM replacement that maintains factory safety specifications. It is a direct successor to legacy part numbers 40ES71081D3, HH18AH130, HH18HA109, and P331-2108. Integrating this furnace high limit switch restores reliable automatic thermal management, protecting the heat exchanger from the stresses of restricted airflow or blower failure.

• Precise Thermal Calibration: Fixed 140°F open and 100°F close setpoints ensure the Carrier HH18HA141 responds accurately to over-temperature conditions.
• Direct OEM Compatibility: Designed specifically for Carrier, Bryant, and Payne platforms to eliminate mounting and wiring variances found in universal alternatives.
• Automatic Reset Logic: The auto-reset limit switch restores furnace function once safe operating temperatures are reached, reducing unnecessary manual service calls.
• Heavy-Duty Electrical Rating: Rated for 10 FLA at 120V and 5 FLA at 240V, providing robust HVAC safety switch performance across residential and light commercial applications.

• What causes this limit switch to trip repeatedly? Frequent tripping is often caused by restricted airflow. Check for clogged air filters, blocked return ducts, or a failing blower motor that isn't moving enough air across the heat exchanger.
• Can I bypass the HH18HA141 for testing? While technicians may jump the terminals momentarily to diagnose a faulty switch, never operate a furnace without a functional limit switch. It is a primary safety device required to prevent fires and heat exchanger cracks.
• How do I verify if the switch is bad? Using a multimeter, check for continuity across the terminals when the switch is cool. If you have an "open" reading at room temperature, the internal bimetallic disc has failed and the HH18HA141 must be replaced.
