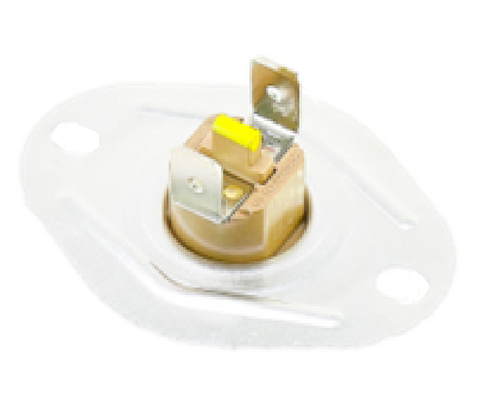

Carrier HH18HA416 Limit Switch

The Carrier HH18HA416 Limit Switch is a critical safety component designed for precise thermal monitoring in HVAC furnace applications. This genuine OEM replacement part features a fixed 215°F temperature setpoint and a manual reset (M/R) mechanism, ensuring the system remains offline if an over-temperature condition occurs until a technician can diagnose the root cause, such as a restricted heat exchanger or failed blower motor. Engineered to handle high-amperage induction loads, this switch provides reliable circuit interruption to prevent damage to the primary heat exchanger and ensure combustion safety.

For contractors servicing Carrier, Bryant, and Payne equipment, the HH18HA416 offers exact drop-in compatibility, maintaining the UL certification and original safety specifications of the unit. Its durable bimetal sensing element is calibrated for accuracy in high-cycle environments, providing the rapid response time necessary to protect the furnace limit control circuit. Utilizing OEM HVAC parts like this manual reset limit switch ensures consistent HVAC system performance and reduces the risk of nuisance tripping associated with generic alternatives.

Key Benefits

• Precision Thermal Protection: Fixed 215°F trip point provides a reliable safety ceiling for high-efficiency gas furnaces.
• Manual Reset Safety: The M/R limit switch design requires a physical reset, forcing a diagnostic check of the airflow or combustion system after a trip.
• OEM Fitment: Direct replacement for Carrier HH18HA416, ensuring correct spade terminal orientation and mounting hole alignment.
• Industrial-Grade Construction: Built to withstand the thermal stress of modern residential heating systems.

Common Questions

What causes a 215F manual reset limit switch to trip?
A trip usually indicates a significant airflow restriction, often caused by a dirty air filter, blocked return air ducts, or a failing circulator blower. It can also signal an over-firing condition in the burner assembly.

Can I replace a manual reset switch with an automatic reset switch?
No. For safety and HVAC code compliance, you must replace the switch with the exact reset type specified by the manufacturer. Using an automatic switch where a manual reset is required can lead to dangerous heat cycling.

Is the HH18HA416 compatible with other brands?
While primarily used in Carrier, Bryant, and Payne furnaces, it may be used in other ICP equipment. Always verify the L215-degree rating and the part number against the specific equipment model number.
