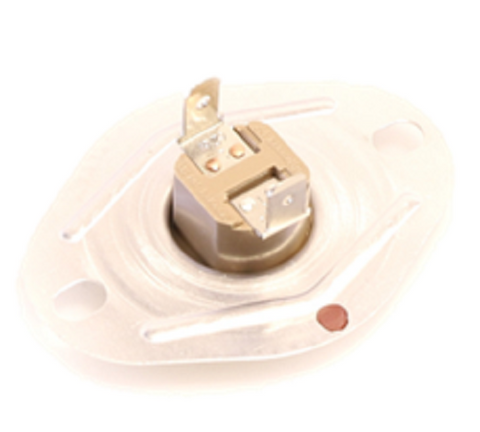

Carrier HH18HA508 Limit Switch

The Carrier HH18HA508 Limit Switch is a critical OEM replacement part designed for precision thermal monitoring in Carrier, Bryant, and Payne gas-fired furnaces. As a primary safety component, this 120-160 degree limit switch features an automatic reset function, ensuring the burner circuit interrupts if internal plenum temperatures exceed the 160°F threshold and restores operation once the system cools to 120°F. Engineered for high-cycle reliability in demanding residential and industrial HVAC applications, the HH18HA508 serves as a direct drop-in for HH18HA508A and 1NT01L-4577. Its compact footprint and genuine OEM build quality provide the exact calibration needed to prevent heat exchanger damage and maintain system sequence of operation. For technicians troubleshooting furnace short cycling or blower motor continuous run issues, verifying the high-limit trip point with this fixed-temperature switch is a standard diagnostic step to ensure safe, code-compliant heating performance.

• Direct OEM Compatibility: Verified fit for a wide range of Carrier, Bryant, and Payne furnaces, replacing old part numbers HH18HA508A and 1NT01L-4577.
• Reliable Thermal Protection: Standardized 160°F open and 120°F close temperatures prevent overheating and safeguard the heat exchanger.
• Automatic Reset Logic: Eliminates the need for manual intervention by automatically resetting the circuit once safe operating temperatures are restored.
• Precision Calibration: Factory-set tolerances ensure the furnace high limit switch trips accurately to maintain the safety string integrity.

What causes a Carrier HH18HA508 limit switch to trip frequently?
Frequent tripping, or short cycling, is typically caused by restricted airflow. Common culprits include a heavily soiled air filter, blocked return air ducts, an undersized duct system, or a failing indoor blower motor. Before replacing the switch, ensure the temperature rise across the heat exchanger is within the manufacturer's specified range.

Is the HH18HA508 a manual or automatic reset switch?
This specific model is an automatic reset limit switch. Unlike flame rollout switches that require a manual button press to restore power, the HH18HA508 will close the circuit automatically once the sensor detects the temperature has dropped to approximately 120°F.

How do I test if my furnace limit switch is defective?
A veteran technician will use a multimeter to check for continuity across the switch terminals while the furnace is cool. If the switch shows an open circuit at room temperature, it has failed and requires immediate replacement to restore furnace ignition sequence.
