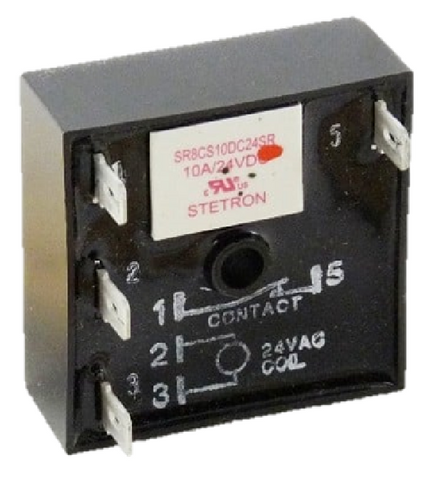

Carrier HN67XZ210 Time Delay

The Carrier HN67XZ210 Time Delay is a critical genuine OEM replacement component engineered for precise sequencing within Carrier, Bryant, and Payne HVAC systems. As a veteran technician knows, short cycling is a leading cause of compressor failure and contactor pitting. This HVAC time delay relay mitigates those risks by enforcing a calculated pause between cycles, ensuring internal refrigerant pressures equalize before the next startup. Designed to meet exact original manufacturer specifications, the HN67XZ210 integrates seamlessly into existing low-voltage control circuits, providing the reliable timing logic necessary for industrial and residential climate control applications.

When performing preventative maintenance or emergency service repairs, using factory-authorized Carrier replacement parts eliminates the compatibility guesswork often found with universal delays. This relay is built to withstand the electrical transients common in high-demand environments, maintaining stable operation and protecting expensive downstream components like fan motors and compressors from premature wear. For contractors, installing this official Carrier OEM part ensures the system operates according to its original design parameters and energy efficiency ratings.

Key Benefits for Technicians

• Prevents Short Cycling: Protects the compressor by ensuring adequate off-time between cooling or heating cycles.
• OEM Compatibility: Drop-in HVAC timing control replacement for Carrier HN67XZ210, ensuring correct fitment and wiring alignment.
• Enhanced System Reliability: Reduces mechanical stress on contactors and motors through proper sequencing.
• Technical Precision: Factory-calibrated timing intervals provide consistent performance that aftermarket "one-size-fits-all" delays cannot match.
• Durable Construction: Engineered to hold up under the high-temperature conditions typical of electrical control cabinets.

Common Questions

What does the Carrier HN67XZ210 Time Delay actually do?
It acts as a safety buffer in the control circuit. By delaying the electrical signal to the contactor, it prevents the system from restarting too quickly after a power interruption or thermostat adjustment, which is vital for compressor longevity.

Is this a universal time delay relay?
No, this is a genuine Carrier OEM part. While some universal relays might offer similar functions, this unit is specifically designed to meet the electrical requirements and physical mounting footprints of Carrier-family equipment.

When should I replace this component?
If you notice the compressor "chattering" during startup, or if the system fails to initiate a delay after being powered down, the time delay control may have failed. Testing for 24V input and 24V output after the timing interval is the standard diagnostic procedure.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
