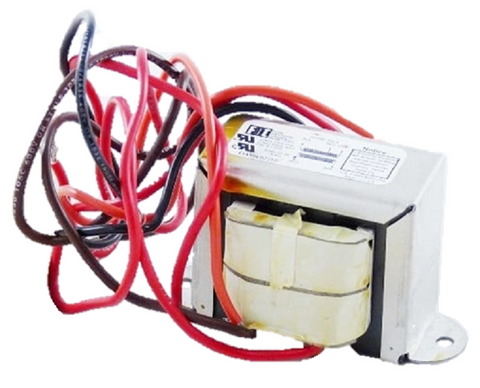

Carrier HT01BF208 Transformer

The Carrier HT01BF208 Transformer is a critical OEM replacement component engineered for precise voltage regulation in residential and light commercial HVAC systems. This 40VA transformer acts as the electrical backbone for your control circuit, stepping down a 208/230V primary voltage to a stable 24V secondary output. Built to handle the inductive loads of contactors, relays, and integrated furnace gaskets, the HT01BF208 ensures that sensitive low-voltage electronics receive consistent power without fluctuations. As a genuine Carrier HVAC replacement part, it offers exact physical and electrical compatibility with existing mounting brackets and wire harnesses, reducing field labor time. Whether you are troubleshooting a dead control board or a chatter in the contactor, our HVAC control circuit transformer provides the industrial-grade copper windings and thermal protection required for high-duty cycle environments.

Technical Benefits for Contractors

• Precise Step-Down Performance: Converts 208V or 230V line voltage to the 24V NEC Class 2 standard required for thermostats and control modules.
• OEM Specification Matching: Eliminates the risks associated with universal multi-tap transformers, such as incorrect lead isolation or physical footprint mismatches.
• Optimized Power Density: The 40VA rating provides sufficient overhead for multi-stage systems and auxiliary accessories without excessive heat generation.
• Resilient Construction: Engineered to withstand the high ambient temperatures found in furnace vestibules and rooftop units.

Common Questions

Can I use the HT01BF208 to replace a 30VA transformer?

Yes, increasing the VA rating from 30VA to 40VA provides additional power capacity for the 24V circuit, which can improve component longevity in systems with high-draw solenoids or accessories.

What are the primary lead colors for this Carrier transformer?

While wire colors can vary by production batch, this unit typically features dedicated leads for 208V and 230V inputs to ensure the secondary side maintains a true 24V output regardless of local line voltage variations.

Is this transformer compatible with Bryant or Payne equipment?

As part of the Carrier family, the HT01BF208 is the standard 24V step-down transformer for many Bryant and Payne air handlers and furnaces that share the same internal platform specifications.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
