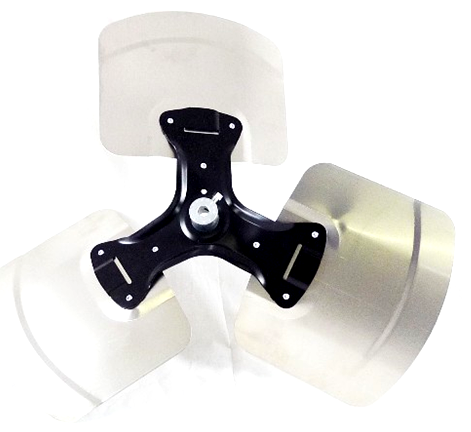

When you're out in the field and need a direct swap for a failing condenser fan, the Carrier LA01RA025 Fan Blade is the exact OEM spec required for a precise fit. This 22-inch diameter propeller is engineered with a 20-degree pitch and a 3-blade configuration to move air efficiently across the coils, maintaining critical head pressure in residential and light commercial condensing units. Designed for Clockwise (CW) rotation and featuring a standard 1/2-inch bore on the intake side, this blade secures firmly to the motor shaft, reducing vibration and mechanical wear on the motor bearings. As a specialized HVAC replacement part, it ensures the system operates within original factory airflow parameters. Using an OEM fan blade like the LA01RA025 eliminates the guesswork of universal "will-fit" components that often lead to mismatched CFM or increased decibel levels during operation.

• Exact OEM Match: Direct replacement for Carrier, Bryant, and Payne units, ensuring no modifications are needed during installation.
• Optimal Airflow: The 20-degree blade pitch is calibrated to deliver specific static pressure requirements for efficient heat transfer.
• Balanced Performance: Factory-balanced 3-blade design minimizes shaft wobble, extending the life of the condenser fan motor.
• Standard Fitment: The 1/2" bore with intake-side hub placement fits most standard 1075 and 825 RPM motors used in these chassis.

Is the LA01RA025 compatible with all 22-inch Carrier units?
No, compatibility depends on rotation (CW) and blade pitch (20°). Always verify the part number in the service manual of the specific model to ensure the motor can handle the torque required by this specific pitch.

Which side does the hub face?
The hub on this model is located on the intake side, which is standard for most draw-through condenser applications where the motor is mounted below the fan blade.

Can I use this for a CCW (Counter-Clockwise) motor?
No, this blade is specifically pitched for CW rotation. Running this on a CCW motor will result in reversed airflow and likely lead to high-pressure trips or compressor failure.

Item is Non Cancelable / Non Returnable

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
