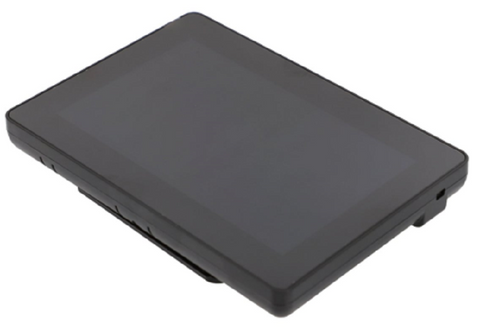

Carrier SYSTXBBECC01-C Control

The Carrier SYSTXBBECC01-C Evolution Connex Control is a Series C communicating HVAC system control designed for compatible Carrier Evolution equipment. This Evolution Connex thermostat features a 5-inch high-resolution touchscreen and built-in Wi-Fi connectivity for supported remote system access.

The control manages temperature, humidity, ventilation, zoning, airflow, equipment staging, and system diagnostics. When connected to compatible communicating equipment, the control can automatically identify system components and configure available operating functions.

The SYSTXBBECC01-C also supports occupancy sensing, automatic heating and cooling changeover, programmable fan operation, local weather information, and compatible indoor air quality accessories. Zoned configurations can support up to eight zones when used with the required compatible zoning equipment.

Because this is a communicating system control rather than a conventional thermostat, verify the complete HVAC equipment model, system configuration, and existing control before replacement.

Key Benefits

• Carrier Evolution Connex Control
• Part number SYSTXBBECC01-C
• Series C communicating control
• 5-inch high-resolution touchscreen
• Built-in Wi-Fi connectivity
• Controls temperature, humidity, ventilation, and compatible accessories
• Supports compatible HVAC zoning systems with up to eight zones
• Occupancy sensing capability
• Automatic heating/cooling changeover
• Communicating equipment diagnostics
• Self-configuring with compatible Evolution equipment
• Powered through the HVAC system connection
• Supports compatible Carrier system functions such as Perfect Heat, Perfect Humidity, and Hybrid Heat

Common Questions

Is the SYSTXBBECC01-C a standard thermostat?
No. It is a communicating system control designed to exchange operating and diagnostic information with compatible Carrier Evolution HVAC equipment. Compatibility should be confirmed before replacing a conventional thermostat or an earlier system control.

Can the SYSTXBBECC01-C control a zoned HVAC system?
Yes. The Evolution Connex platform can support zoning configurations with up to eight zones when the required compatible zoning components are installed.

Does the SYSTXBBECC01-C have Wi-Fi?
Yes. The control includes Wi-Fi connectivity for supported remote-access and system connectivity functions.

Is SYSTXBBECC01-C a Series C control?
Yes. SYSTXBBECC01-C identifies the Series C version of the Evolution Connex Control. Verify the existing control and complete HVAC system configuration before replacement.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
