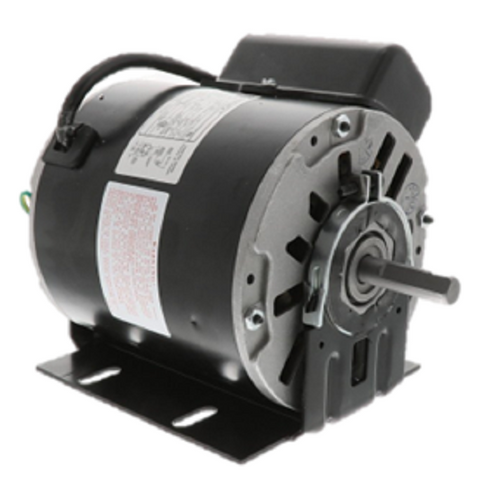

Century Motors 0547A Motor

Motor, OEM Replacement, 1/8hp, 115Vac, Single Phase, 700 RPM, 1 Speed, 2.1 Amps, 48Y Frame Size, Open Air Over, Ball Bearing, 1/2" Diameter Shaft, CW Lead End Rotation, Resilient Base Mounting, Permanent Split Capacitor Motor

0547A is the direct replacement for HF4H005, HF4H005N

Century Motors 0547A OEM Replacement Motor | Regal Rexnord

The Century Motors 0547A by Regal Rexnord is a high-quality OEM replacement motor designed for reliable performance and long-lasting operation in HVAC and industrial applications. Built with precision engineering, this 1/8 HP, 115V, single-phase motor delivers efficient and quiet operation with a 700 RPM speed and permanent split capacitor (PSC) design.

Key Features

• OEM Direct Replacement Motor – Engineered to match original performance specifications for easy installation.

• 1/8 HP, 115V, Single Phase – Ideal for light-duty applications requiring dependable performance.

• 700 RPM, 1 Speed, CW Rotation (Lead End) – Ensures consistent speed and direction.

• Permanent Split Capacitor (PSC) – Requires a 6 MFD-370V capacitor (included).

• Ball Bearing Construction – Provides smooth, quiet operation and extended motor life.

• Thermally Protected – Automatically shuts off to prevent overheating.

• Open Air Over Enclosure – Optimized for applications with direct airflow.

• Resilient Base Mounting – Reduces vibration and simplifies installation.

• 1/2" Diameter Shaft with Flat – Fits securely for stable, efficient power transfer.

• Class B Insulation, 40°C Ambient Rated – Suitable for continuous duty under demanding conditions.

Technical Specifications

• Manufacturer: Regal Rexnord / Century Motors

• Model: 0547A

• Frame Size: 48Y (5.6" Diameter)

• Horsepower: 1/8 HP (0.10 kW)

• Voltage: 115V AC

• Current Draw: 2.1 Amps

• Frequency: 60 Hz

• Speed: 700 RPM

• Phase: Single Phase

• Thermal Protection: Automatic

• Duty: Continuous Air Over

• Insulation Class: B

• Mounting Type: Resilient Base

• Bearing Type: Ball Bearing

• Leads: 23" Leads Included

• Certifications: UL Recognized, CSA Certified, CE Compliant

Applications

Perfect for HVAC systems, blowers, fans, and other air-moving equipment, the Century Motors 0547A provides energy-efficient performance and easy replacement for OEM models.

Optimize your system performance with the trusted reliability of Regal Rexnord’s Century Motors — engineered to keep your equipment running efficiently and dependably.
