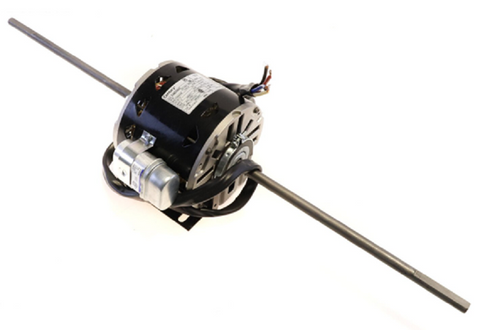

Century Motors 680A Motor

1/8HP, 115 Vac, Single Phase, 775-650-525 RPM, 3 Speed, 1.5 Amps, F48Y Nema Frame Size, Open Air, Sleeve Bearing, 11 1/2" x 1/2" x 11 1/2" Shaft, CCW Lead End Rotation, Permanent Split Capacitor Motor

Century Motors 680A – 1/8 HP 115V 3-Speed OEM Replacement Motor | Regal Rexnord

The Century Motors 680A is a high-quality 1/8 HP, 115V permanent split capacitor (PSC) motor designed for efficient performance in HVAC and air-moving applications. Built by Regal Rexnord – Century Motors, this OEM-grade replacement motor features a 48 Frame (F48Y) resilient base, open air design, and automatic thermal protection for reliable operation and long service life.

Ideal for replacing worn or failed motors, the 680A provides three selectable speeds (775/650/525 RPM), quiet operation, and a durable double-shaft design with sleeve bearings. Supplied with a 6 MFD 370V capacitor, this motor ensures consistent performance and improved energy efficiency.

Key Features

• OEM Direct Replacement for HVAC and air-circulation systems

• 1/8 HP, 115 VAC, Single Phase, 1.5A

• Three-Speed Operation: 775 / 650 / 525 RPM

• Permanent Split Capacitor (PSC) Motor – Capacitor (6 MFD, 370V) included

• Open Air Over Design (OAO) for maximum cooling

• F48Y NEMA Frame | 5.6" Diameter | Resilient Base

• 1/2" Diameter Double Shaft with Flat – 11.5" x 1/2" x 11.5"

• CCW Rotation (Lead End)

• Thermally Protected | Class B Insulation | 40°C Ambient Rating

• Design Upgrade Option: Sleeve Bearing to Ball Bearing Conversion Available

Technical Specifications

Applications

• HVAC systems and air handlers

• Fans and blowers

• Commercial & residential ventilation

• Replacement for worn OEM motors

Included

• Motor (Model 680A)

• 6 MFD 370V Capacitor

• 49" lead wires

Enhance system performance with a dependable Century Motors 680A replacement motor—engineered to meet OEM standards and support long-lasting, efficient operation.
