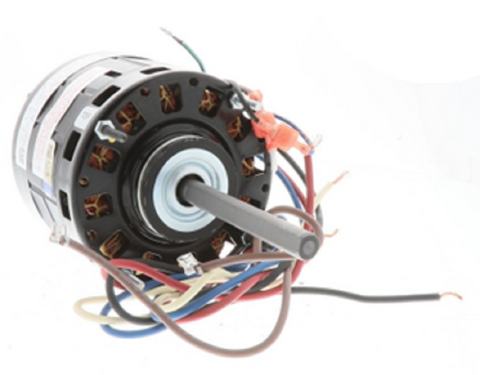

Century Motors BL6530 Motor

1/3-1/4-1/6HP, 115 Vac, Single Phase, 1075 RPM, 3 Speed, 6.3-3.6-2.5 Amps, 42Y Nema Frame Size, Semi Enclosed, Sleeve Bearing, 1/2" x 4 1/2" Shaft, Reversible Rotation, Permanent Split Capacitor Motor

BL6530 is identical to S1-024-40911-000

Century Motors BL6530 Fan and Blower Motor – 1/3-1/4-1/6 HP, 115V, 1075 RPM, 3-Speed, 42Y Frame

The Century BL6530 Fan and Blower Motor is a durable, high-performance motor designed for use in furnace blowers, air handlers, fan coils, and air conditioning units. Built for efficiency and reliability, this permanent split capacitor (PSC) motor offers three speed options (1075 RPM) with reversible rotation for versatile HVAC applications.

Featuring a semi-enclosed enclosure, sleeve bearings, and Class B insulation, the BL6530 ensures long-lasting performance even in demanding air-over duty environments. With its resilient ring mounting and extended studs, installation is straightforward, and its 1/2" x 4.5" shaft with flat design ensures compatibility with a wide range of fan and blower assemblies.

Key Specifications:

• Manufacturer: Century Motors

• Model / Part #: BL6530

• Horsepower: 1/3 – 1/4 – 1/6 HP

• Voltage: 115 VAC

• Phase: Single Phase

• Frequency: 60 Hz

• Amperage: 6.3 – 3.6 – 2.5 Amps

• Speeds: 3 (1075 RPM)

• Frame Size: 42Y NEMA

• Shaft: 1/2" diameter x 4.5" length with flat

• Bearing Type: Sleeve Bearing

• Enclosure: Semi Enclosed (Air Over)

• Mounting: Resilient Ring Mounting / Belly Band (not included)

• Thermal Protection: Automatic

• Insulation Class: B

• Capacitor Required: 15 MFD, 370 VAC (not included)

• Ambient Temperature Rating: 40°C

Features & Benefits:

• Reliable PSC design for energy-efficient performance

• Reversible rotation for installation flexibility

• Thermally protected to prevent overheating

• Easy installation with extended studs and multiple mounting options

• CSA and UL recognized for safety and compliance

Applications:
The Century BL6530 motor is designed for HVAC systems such as:

• Furnace blower motors

• Air handler units

• Fan coil systems

• Residential and light commercial air conditioning

Upgrade or replace your blower motor with the Century BL6530 – engineered for durability, efficiency, and dependable HVAC performance.
