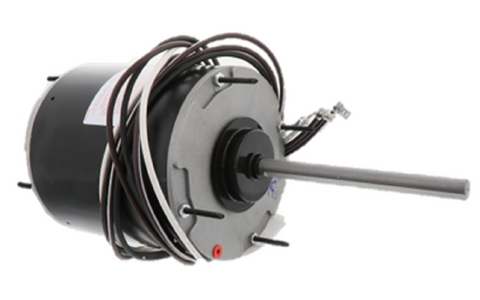

Century Motors FEH1076SF Motor

3/4HP, 460 Vac, Single Phase, 1075 RPM, 1 Speed, 2.2 Amps, 48 Nema Frame Size, Enclosed, Ball Bearing, 1/2" x 6 1/2" Shaft, Reversible Rotation, Permanent Split Capacitor Motor

FEH1076SF is the direct replacement for FEH1076S, F48X94A01

Century Motors FEH1076SF Motor – 3/4 HP 460V Single Phase PSC Motor for HVAC & Refrigeration

The Century FEH1076SF is a high-performance 3/4 HP condenser fan motor designed specifically for use in heat pumps, refrigeration units, and air conditioning systems. Built with durable materials and advanced thermal protection, this Permanent Split Capacitor (PSC) motor offers reliable, energy-efficient performance for demanding HVAC applications.

Key Features:

• Brand: Century Motors

• Model: FEH1076SF

• Horsepower: 3/4 HP (0.56 kW)

• Voltage: 460V, Single Phase

• Speed: 1075 RPM

• Amperage: 2.2 A

• Number of Speeds: 1

• Motor Type: PSC (Permanent Split Capacitor) – Capacitor Required: 10 MFD, 370V (Not Included)

• Frame: 48 (5.6" Diameter)

• Enclosure: Totally Enclosed Air Over (TEAO)

• Bearing Type: Ball Bearing

• Thermal Protection: Automatic

• Insulation Class: F

• Ambient Temperature: Rated up to 70°C

• Shaft: 1/2" Diameter x 6.5" Length with Double Flat

• Mounting: Extended Studs on Shaft End and Lead End, Mounting Holes in Shell, Belly Band Mount (Not Included)

• Leads: 48" Wire Leads

• Rotation: Reversible

• Duty: Air Over

• Certifications: UL Recognized, CSA Certified

Applications:
Ideal for use in HeatMaster, condenser fans, refrigeration systems, and heat pump applications, the FEH1076SF motor is a dependable replacement motor for OEM and aftermarket repairs.

Why Choose the Century FEH1076SF?
Built for performance and longevity, this motor features Class F insulation, ball bearings for smooth operation, and total enclosure to resist environmental wear—making it a perfect fit for commercial and industrial HVAC systems.
