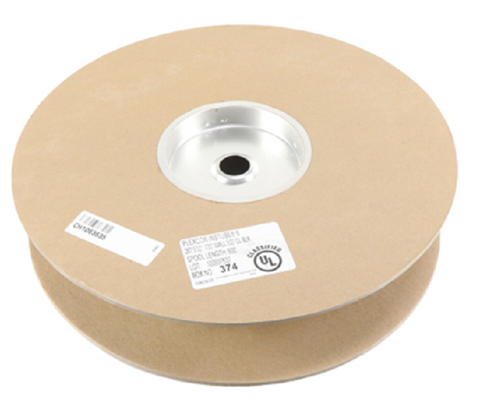

Chevron Pneumatic Tubing 1063635 Pneumatic Tubing

For high-performance commercial HVAC control systems, the Chevron Pneumatic Tubing 1063635 provides a reliable 500 foot roll of 5/32" OD pneumatic tubing. Specifically engineered for plenum rated installations, this black polyethylene tubing meets UL 1820 standards for smoke and heat release, making it suitable for use in air handling spaces. This tubing, also recognized by industry cross-references 1219-13004 and 2802-001, offers a 0.096" ID and is designed to handle a burst pressure of 350 psi. Its flame-retardant polymer construction prevents stress cracking and ensures a long-term, leak-proof pneumatic control circuit in demanding building automation environments.

• Plenum Rated Confidence: Meets NFPA 90A and UL 1820 requirements for installation in ceiling spaces and ducts.
• Technical Compatibility: Fully interchangeable with 1219-13004 and 2802-001 common industry part numbers.
• High Pressure Resilience: Tested with a 350 psi burst pressure for safety and reliability in standard pneumatic instrument loops.
• UV and Chemical Resistance: The black polymer material provides enhanced protection against degradation in exposed environments compared to clear alternatives.

Is this tubing compatible with standard push-to-connect fittings?
Yes, the 5/32" outer diameter is precision-extruded to maintain the tight tolerances required for a secure seal with 5/32 inch push-to-connect and barbed pneumatic fittings.

Can this be used for air brake applications?
No, this is pneumatic control tubing designed for HVACR instrumentation; it is not DOT-rated for vehicular air brake systems.

Why use black tubing instead of clear or translucent?
The black polyethylene finish provides superior UV resistance, preventing the material from becoming brittle when exposed to sunlight or high-intensity mechanical room lighting.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
