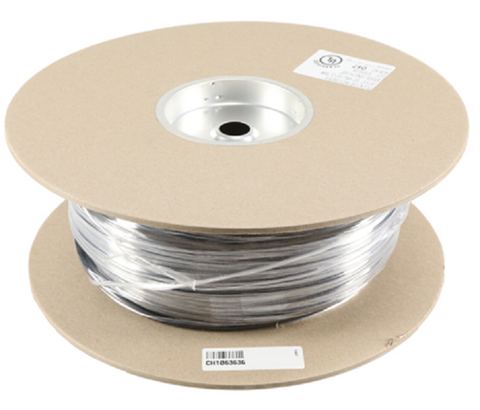

Chevron Pneumatic Tubing 1063636 Pneumatic Tubing

The Chevron Pneumatic Tubing 1063636 is a professional-grade 5/32" OD twin pneumatic tubing designed specifically for demanding HVACR control systems. Engineered for high-performance pneumatic instrument controls, this plenum-rated tubing meets UL 1820 standards for flame retardancy and smoke generation, making it the standard choice for installation in ceiling spaces and air handling plenums. This 500-foot roll of black, polyethylene pneumatic tubing provides the durability required for long-term building automation infrastructure. As a direct crossover for industry-standard part numbers 1219-130T4 and 2802-300, this twin-tube pneumatic line simplifies the routing of dual-signal control paths, reducing labor time during complex system retrofits or new construction. The 0.096" ID ensures consistent pressure transmission for critical HVAC pneumatic controls and building automation systems.

• Plenum Rated (UL 1820): Fully compliant for use in environmental air spaces and plenums.
• Twin-Tube Configuration: Efficiently pulls two lines at once, ideal for pneumatic thermostat and dual-signal actuator setups.
• Standardized Compatibility: Direct replacement for Chevron 1063636, 1219-130T4, and 2802-300.
• Durable Polyethylene: High-resistance to kinking and common environmental stressors in commercial mechanical rooms.
• High-Contrast Black Finish: Provides UV resistance and clear identification within dense control panels.

Is 5/32" tubing compatible with standard 1/4" pneumatic fittings?
Standard 5/32" OD tubing requires dedicated 5/32" barbed or push-to-connect fittings. For integration into existing 1/4" systems, use a reducing union or tee specified for 5/32" to 1/4" transitions.

When should I use plenum-rated tubing over standard FR polyethylene?
Plenum-rated pneumatic tubing is mandatory when the installation path utilizes a building's air handling space as a return air plenum. This ensures compliance with local fire codes regarding smoke and flame spread.

Can this twin tubing be easily separated for individual terminations?
Yes, the twin pneumatic tubing is designed to be easily "zipped" or pulled apart at the ends for termination at separate actuators or control ports without compromising the integrity of either line.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
