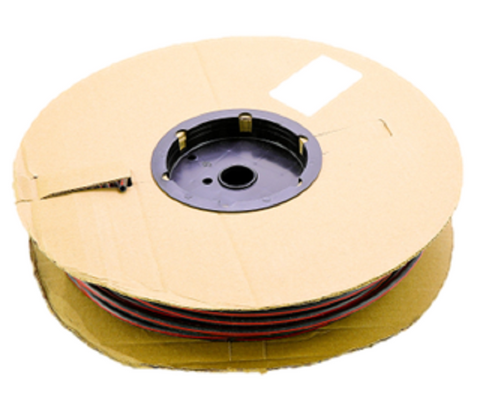

Chevron Pneumatic Tubing 1063767 Tubing

Upgrade your building automation controls with this 250-foot roll of 1/4" OD pneumatic tubing. Engineered for high-performance HVAC systems and pneumatic instrument control, this plenum-rated tubing features a flame-retardant polyethylene construction. This specific model, 1063767, is designed with a black jacket and red stripe to ensure rapid pneumatic circuit identification during multi-line installations. It is a direct and identical crossover for 1219-440B3 and 2802-102, ensuring seamless integration with existing Synflex or Chevron Plexco control loops.

This polyethylene pneumatic tubing is manufactured to meet NFPA 90A and UL 1820 standards, making it safe for installation in environmental air ducts and plenum spaces. Its stress-crack resistant properties and 0.040" wall thickness provide a reliable working pressure of 150 PSI, with a burst pressure of up to 450 PSI. The material is highly flexible for easy routing through tight enclosures while maintaining kink resistance and excellent memory for consistent airflow in critical building automation systems.

Key Benefits

• Code Compliance: Meets UL 1820 and ASTM D635, certified for use in plenums and other environmental air spaces.
• Easy Identification: The red stripe allows for error-free tracing of complex pneumatic control lines.
• Chemical Resistance: The exclusive compounded polyethylene formulation provides superior resistance to corrosion and environmental degradation.
• Universal Compatibility: Fully compatible with standard 1/4" compression fittings and push-to-connect pneumatic connectors.
• Job Site Efficiency: The 250-foot roll offers enough length for standard field runs without unnecessary splices.

Common Questions

Is 1063767 tubing compatible with 1219-440B3?
Yes, this part is identical to the 1219-440B3 and 2802-102 specifications. It serves as a direct drop-in replacement for these part numbers in HVAC control applications.

Can this be used for water lines?
No, this pneumatic tubing is specifically designed for air and pneumatic supply lines. It is not rated for potable water or high-pressure hydraulic systems.

What is the temperature range for this tubing?
This flame-retardant tubing typically maintains structural integrity in environments ranging from -40°F to 140°F, depending on the constant operating pressure.
