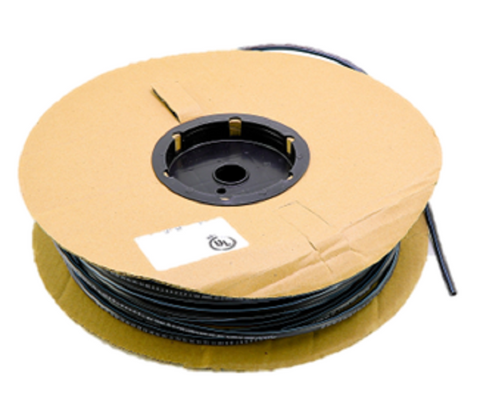

Chevron Pneumatic Tubing 1063768 Tubing

The Chevron 1063768 is a professional-grade 1/4" OD pneumatic tubing designed specifically for low-pressure control signals in HVAC automation and pneumatic temperature control systems. This plenum-rated tubing is engineered with a flame-retardant polyethylene compound, ensuring compliance with building codes for installation in ceiling spaces and air handling plenums. Sold in a 250-foot roll, this black with blue stripe tubing allows for easy line identification in complex control panels and multi-run installations. For contractors sourcing legacy components, the 1063768 is a direct, identical replacement for part number 2802-106, maintaining consistent burst pressure ratings and dimensional stability across varying ambient temperatures. The high-quality resin construction resists environmental stress cracking and provides the necessary flexibility for tight bends without kinking, ensuring reliable pneumatic signal transmission between actuators, thermostats, and controllers. This is a standard-spec component for maintaining or retrofitting pneumatic logic systems in commercial facilities.

• Plenum Rated (UL Listed): Engineered for safe installation in environmental air spaces and plenums.
• Direct Cross-Reference: Identical performance specifications and dimensions to 2802-106 for seamless maintenance.
• High Visibility Identification: Black with blue stripe jacket simplifies circuit tracing and troubleshooting in dense pneumatic looms.
• Durable Polyethylene Construction: Offers superior resistance to stress cracking and chemical exposure common in mechanical rooms.
• Standard 1/4" OD: Ensures compatibility with standard compression fittings, push-to-connect unions, and barbed connectors.

Is this tubing compatible with standard push-to-connect fittings?
Yes, the 1/4-inch outside diameter is manufactured to tight tolerances, ensuring a leak-free seal with standard pneumatic push-to-connect or compression-style fittings.

Can 1063768 be used in return air plenums?
Yes, this tubing is specifically plenum rated, meaning it meets the smoke and flame spread requirements necessary for installation in air handling spaces.

What is the primary difference between 1063768 and 2802-106?
There is no functional or physical difference; these part numbers are identical and can be used interchangeably in all technical applications.
