Chevron Pneumatic Tubing 1063769 Tubing

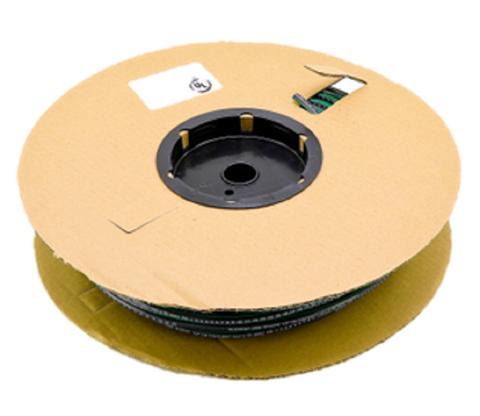

The Chevron Pneumatic Tubing 1063769 is a professional-grade solution for commercial HVACR building automation and pneumatic control systems. This plenum-rated pneumatic tubing is designed for high-performance air distribution within environmental air spaces, meeting strict UL 1820 standards for flame spread and smoke density. Featuring a 1/4 inch OD and a 0.170 inch ID, this polyethylene (PE) tubing is engineered to handle pneumatic instrument controls with a robust wall thickness of 0.040 inches. The 250 foot roll is color-coded black with a green stripe for rapid circuit identification in complex manifold setups. It is functionally identical to 2802-105, ensuring seamless integration into existing pneumatic control loops and compatibility with standard push-to-connect fittings. Highly resistant to stress cracking and brittleness at temperatures as low as -104.8°F, this tubing maintains consistent airflow and signal integrity for actuators, dampers, and sensors in demanding industrial environments.

• Plenum Rated Performance: Meets UL 1820 requirements for safe installation in plenum spaces and environmental air ducts.
• Circuit Identification: The black with green stripe jacket allows technicians to organize and trace lines efficiently in multi-circuit systems.
• Technical Compatibility: Cross-references directly to 2802-105, making it a reliable drop-in replacement for maintenance and repair.
• Industrial Durability: Engineered from polyethylene to provide high stress-crack resistance and a burst pressure of 500 psi at ambient temperatures.
• Standardized Sizing: Maintains tight 1/4" OD tolerances for leak-free connections with compression and push-lock fittings.

Is this tubing safe for use in ceiling plenums?
Yes, the 1063769 tubing is plenum rated and compliant with UL 1820, meaning it meets the specific fire and smoke safety standards required for installation in building ceiling spaces used for air return.

Can I use this as a replacement for part number 2802-105?
Absolutely. This Chevron pneumatic tubing is a direct equivalent to 2802-105, sharing the same physical dimensions, material properties, and 1/4 inch OD specifications.

What is the maximum pressure rating for this 1/4 inch tubing?
While the burst pressure is rated at 500 psi at 75°F, it is typically utilized in pneumatic instrument control applications where operating pressures are significantly lower to ensure long-term system stability.
