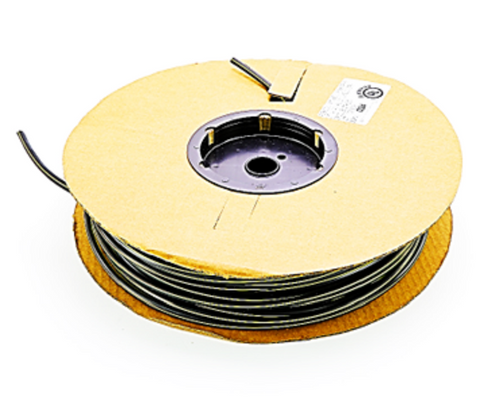

Chevron Pneumatic Tubing 1063771 Tubing

The Chevron Pneumatic Tubing 1063771 is a high-performance building automation component designed for pneumatic control systems requiring strict adherence to fire safety protocols. This light-weight, 250-foot roll of 1/4 inch OD pneumatic tubing is constructed from flame-retardant polyethylene, specifically engineered for installation in air ducts and environmental air spaces. As a direct equivalent to the 2802-104, it features a plenum rated jacket that meets UL 1820 standards for low smoke and heat release. The black polyethylene tubing includes a high-visibility yellow stripe, ensuring rapid circuit identification in complex HVAC control runs and multi-tube bundles. Its superior stress-crack resistance and kink-resistant memory provide a reliable airtight seal when used with standard barbed or push-to-connect fittings in building automation systems (BAS). Technical technicians prefer this DriscoPlex 2600 Series equivalent for its 0.170" ID and ability to maintain structural integrity in low-pressure pneumatic pulse applications up to 1 atm.

• Plenum Rated (UL 1820): Certified for safe installation in environmental air plenums and ceiling cavities.
• Circuit Identification: Features a distinct yellow stripe on a black base for fast troubleshooting in pneumatic systems.
• High Stress-Crack Resistance: Engineered to prevent fatigue at connection points and tight bends.
• Universal Compatibility: Fully interchangeable with 2802-104 and compatible with all 1/4" OD HVAC pneumatic fittings.

Common Questions

Is this tubing suitable for ceiling plenums?
Yes, this 1063771 tubing meets NFPA 90A requirements and is UL 1820 listed, making it suitable for air ducts and other environmental air spaces where plenum-rated materials are mandatory.

What is the best way to ensure a leak-free connection?
For polyethylene tubing, ensure the cut is square and clean. When using barbed fittings, the material's memory provides a secure grip; for push-to-connect units, ensure the tube is fully seated past the O-ring.

Can this be used for high-pressure industrial air?
This tubing is specifically designed for HVAC pneumatic control and industrial automation pulse circuits. It is rated for low pressure pneumatic applications, typically up to 30 PSI, though it has a higher burst pressure rating for safety overhead.
