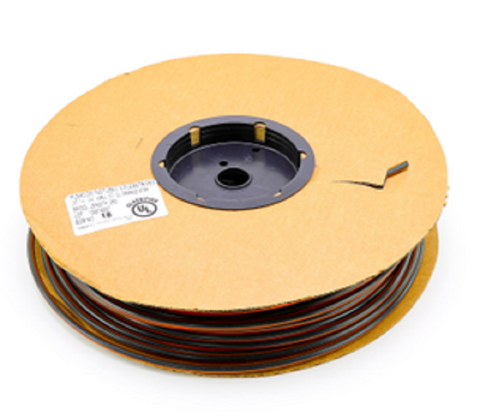

Chevron Pneumatic Tubing 1063772 Tubing

The Chevron Pneumatic Tubing 1063772 is a professional-grade solution for technicians requiring reliable 1/4" OD pneumatic tubing for complex building automation and HVAC control environments. This 250-foot roll is manufactured from high-quality thermoplastic, ensuring the flexibility needed for tight routing in control cabinets while maintaining structural integrity under pressure. It is specifically designed to meet NFPA 90A and UL 1820 standards, making it plenum-rated tubing suitable for installation within air handling spaces. The black with orange stripe color coding provides immediate circuit identification, reducing troubleshooting time during field service. This model is a direct cross-reference and functional equivalent to 1219-440C3 and 2802-103, allowing for seamless integration into existing pneumatic control systems. Engineered in the USA and ASTM D635 certified for flame resistance, this tubing ensures long-term performance in critical commercial and industrial HVACR pneumatic applications.

Technical Benefits for Contractors

• Plenum Compliance: Meets UL 1820 and NFPA 90A requirements for safe routing through drop ceilings and air plenums.
• High-Visibility Identification: The distinctive orange stripe on a black jacket simplifies wire-tracing and prevents cross-connection errors.
• Interchangeable Specifications: Provides an exact match for 1219-440C3 and 2802-103, ensuring compatibility with standard 1/4" push-to-connect or compression fittings.
• Flame Resistance: ASTM D635 certification provides the necessary fire safety ratings for rigorous building codes.
• Industrial Durability: The thermoplastic construction resists kinking and environmental stress cracking in mechanical room environments.

Common Questions

Is this tubing compatible with standard pneumatic fittings?
Yes, the 1/4" outside diameter is precision-extruded to work with standard pneumatic compression fittings, barb connectors, and push-to-connect hardware used in building automation.

Can 1063772 be used in return air plenums?
Yes, this is plenum-rated tubing. It is specifically tested under UL 1820 standards for smoke and heat release, making it suitable for air handling spaces where non-plenum tubing is prohibited.

How does the orange stripe help during installation?
In multi-line pneumatic bundles, the orange stripe allows technicians to distinguish specific control lines (such as main air vs. branch lines) without needing to manually label every foot of the run.
