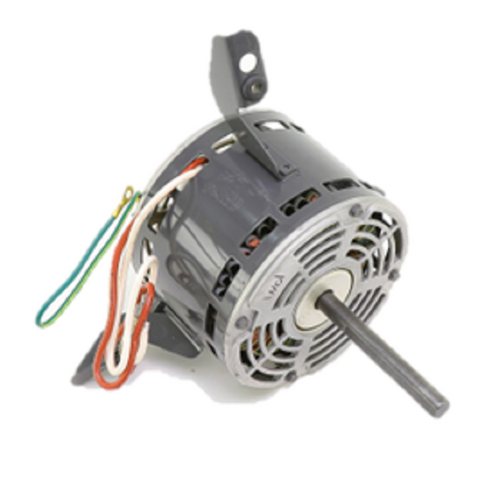

ClimateMaster 14B0001N01 Motor

The ClimateMaster 14B0001N01 is a genuine OEM 1/8 HP blower motor engineered for precision air movement in ClimateMaster and Carrier water-source heat pumps and fan coil units. Operating on a 208/230V, 60Hz single-phase power supply, this induction motor features a multi-speed design with a rated speed of approximately 1090 RPM. As a direct factory replacement, it ensures the mechanical and electrical integrity of the original air handler assembly is maintained without the need for field modifications. This motor utilizes a standard frame size for drop-in installation and is designed to handle the static pressure requirements of residential and light commercial HVACR applications. Technicians often rely on this 3-speed motor to optimize airflow across the evaporator coil, ensuring the system hits its designed CFM targets and maintains efficient thermal exchange.

Key Benefits:

• OEM Specification Match: Guaranteed compatibility with ClimateMaster 14B0001N01 mounting brackets and electrical harnesses.
• Multi-Speed Versatility: Triple-tap lead configuration allows for precise field tuning of high-volume airflow based on ductwork capacity.
• Industrial Build Quality: High-grade windings and bearings facilitate consistent performance in high-duty cycle HVAC blower applications.
• High Torque Efficiency: The 1/8 HP rating delivers enough torque to overcome internal static resistance in compact fan coil cabinets.
• Standardized Electrical: Designed for standard 208-230V service, simplifying heating and cooling motor swaps during service calls.

Common Questions:

• What are the wiring lead functions? The motor includes dedicated leads for three specific speed settings, allowing for flexible configuration of low, medium, and high blower curves.
• Which systems use the 14B0001N01? It is primarily found in ClimateMaster heat pumps and select Carrier air handlers requiring a 1/8 HP vertical or horizontal blower drive.
• Does this include the capacitor? This is the motor only; it is professional practice to replace the run capacitor whenever installing a new blower motor to ensure electrical stability.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
