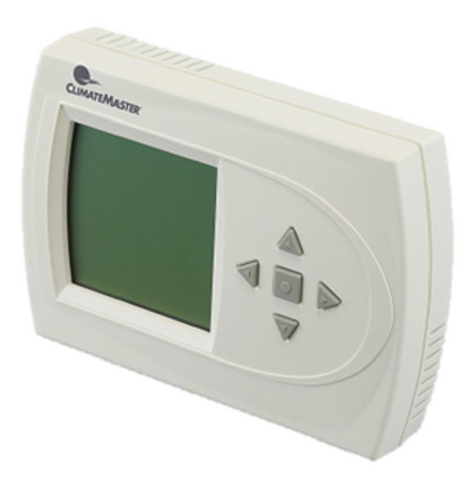

ClimateMaster ATP32U03 Thermostat

The ClimateMaster ATP32U03 is a high-performance 3-heat / 2-cool programmable thermostat specifically engineered for water-source heat pump systems and multi-stage HVAC equipment. Operating on 24V AC, this commercial-grade thermostat utilizes a 7-day, 5/2-day, or 24-hour programming schedule to drive operational efficiency in geothermal and conventional applications. Built for the rigorous demands of ClimateMaster HVAC systems, the unit features a large backlit LCD with a technician-friendly menu for advanced system configuration. It supports auxiliary heat staging and integrates smart recovery logic to reach setpoints by the programmed time without excessive compressor cycling. The terminal block includes dedicated connections for O-reversing valve (energized in cool), fault LED inputs for real-time diagnostic alerts, and outdoor sensor integration for night setback or dual-fuel lockout functionality. As a direct OEM replacement thermostat, it ensures proper communication with DXM and DXM2 control boards, maintaining the precise differential and staging required for water-loop protection.

• Multi-Stage Control: Manages up to 3 stages of heating and 2 stages of cooling, ideal for heat pumps with auxiliary electric or gas heat backups.
• Universal Compatibility: Works seamlessly with ClimateMaster water-source heat pumps and is backward compatible with most 24V multi-stage systems.
• Advanced Diagnostics: Features a dedicated fault input (L) and service-needed alarms to help contractors troubleshoot system lockout conditions quickly.
• Installation Flexibility: Simple 4-wire or 5-wire connection with a removable back-plate and non-volatile memory that retains all programming during power failures.
• Precision Staging: Adjustable cycles per hour (CPH) and temperature offsets prevent short-cycling, extending the lifespan of the compressor and blower motor.

Is the ClimateMaster ATP32U03 compatible with dual-fuel systems?
Yes, the ATP32U03 is configurable for multi-fuel applications (heat pump with gas backup) through the installer settings menu, allowing you to set balance points when using an outdoor sensor.

What is the difference between the ATP32U03 and ATP32U04?
The ATP32U03 is designed for standard multi-stage temperature control, whereas the ATP32U04 adds integrated humidity control for units equipped with ClimaDry or dehumidification modes.

Does this thermostat require batteries?
No, this unit is hardwired to the 24V common (C) terminal. All programmed setpoints and installer configurations are stored in permanent memory, ensuring no data loss if the system loses power.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
