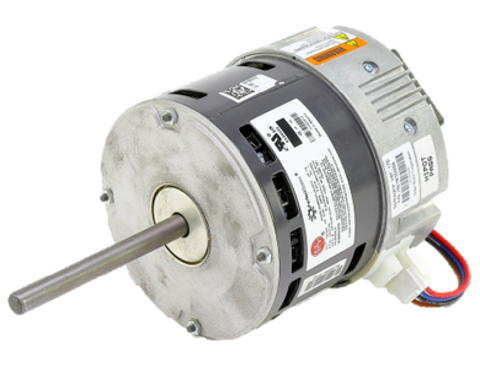

ClimateMaster S14S0017N08 Blower Motor

The ClimateMaster S14S0017N08 is a genuine OEM replacement blower motor designed specifically for high-efficiency geothermal and water-source heat pump applications. This programmed ECM blower motor features factory-calibrated torque and airflow parameters to ensure seamless integration with the existing system control board. Unlike universal motors, this ECM fan motor is pre-configured to maintain the precise CFM requirements of ClimateMaster units, protecting the heat exchanger from improper static pressure and temperature rise. As an electronically commutated motor, it operates with significantly lower power consumption than standard PSC alternatives, utilizing permanent magnet technology to provide variable speed operation and quiet startups. For technicians, this direct ClimateMaster HVAC part eliminates the need for field programming, ensuring the unit returns to original factory performance specifications immediately upon installation.

Key Benefits for Contractors

• Plug-and-Play Integration: Factory-programmed firmware matches the specific fan curve of compatible ClimateMaster internal cabinets.
• High Efficiency: Brushless DC technology reduces amperage draw, lowering the overall system energy footprint.
• Vibration Reduction: Precision-balanced rotor minimizes harmonic noise and mechanical wear on the blower housing.
• Reduced Troubleshooting: OEM internal diagnostics allow the system control board to accurately communicate with the motor via the 16-pin or 4-pin harness.

Common Installation Questions

Is the S14S0017N08 pre-programmed?
Yes, this is a programmed ECM blower motor. It is flashed with the specific voltage, rotation, and horsepower specifications required for ClimateMaster S14S0017N08 compatibility.

Does this motor require a capacitor?
No. Because this is an electronically commutated motor, it uses an internal power module rather than an external run capacitor.

What causes these motors to fail prematurely?
The most common failure points are moisture infiltration in the motor lead "drip loop" or high static pressure from restricted ductwork causing the module to overheat.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
