Conbraco 25-601-00 Gauge

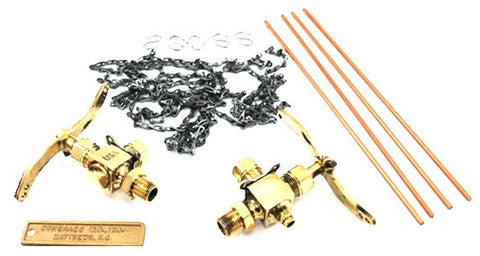

The Conbraco 25-601-00 is an industrial-grade 1/2" Chain Lever Water Gauge designed for precise fluid level monitoring in high-profile boiler and vessel applications. Built with a rugged bronze body, this assembly features a quick-opening design with valve stems that operate on seamless quarter-turns. Engineered for durability, it is rated for service up to 250 psig at 400°F and 500 psig at 100°F. The integrated 12-foot chain and pull handle allow technicians to safely operate valves positioned beyond reach from the floor. This standard pattern gauge includes a 5/8" x 12" glass and EPDM gauge glass gaskets, providing a reliable seal for standard steam and water service. The lower arm is equipped with a 1/4" needle drain valve for simplified maintenance and blowdown procedures. This MNPT connected unit is CRN Registered, ensuring it meets strict North American safety standards for pressure-containing components in industrial HVACR systems.

• Enhanced Accessibility: The 12-foot chain lever mechanism enables remote operation of the shut-off valves for overhead boiler water level management.
• Durable Construction: Heavy-duty bronze construction ensures longevity and resistance to corrosion in demanding thermal environments.
• Service Versatility: High-pressure 500 PSI rating at ambient temperatures covers a wide range of liquid level verification tasks.
• Comprehensive Kit: Success in the field is bolstered by the inclusion of guard rods and standard glass, providing 5/8" OD visibility right out of the box.

• What is the maximum pressure for the Conbraco 25-601-00? This gauge is rated for 250 psig at an operating temperature of 400°F and up to 500 psig at 100°F.
• Does this unit include a drain valve? Yes, the 25-601-00 comes standard with a 1/4" needle drain in the lower arm.
• Is this gauge automatic or non-automatic? This model is a non-automatic quick-opening set, ideal for manual control of water columns.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
