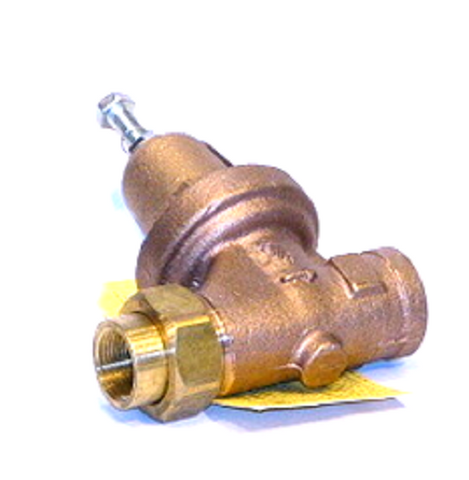

Conbraco 36-104-02 Valve

The Conbraco 36-104-02 Water Pressure Reducing Valve is a professional-grade solution for managing high-pressure municipal water lines in residential and commercial applications. Engineered with a heavy-duty bronze body, this OEM valve handles a 300 PSI maximum inlet pressure and provides a precise 10-35 PSI outlet adjustment range. The 3/4" Union Threaded x 3/4" Female NPT configuration allows for versatile piping integration, while the integrated 20-mesh high-capacity strainer protects the internal cartridge from sediment and scale. Designed for high-temperature resilience up to 180°F, this Apollo/Conbraco 36 series valve is ideal for protecting sensitive downstream equipment and fixtures. The modular design features a replaceable seat assembly, enabling field technicians to perform maintenance or full cartridge swaps without breaking the pipe seal, ensuring minimal system downtime and consistent hydraulic performance.

• System Protection: Effectively reduces high incoming pressure to a stable 10-35 PSI range to prevent pipe knock and fixture damage.
• Debris Management: Integral stainless steel strainer prevents particulates from fouling the valve seat or downstream aerators.
• In-Line Serviceability: Designed with a cartridge-based internal system for rapid repairs without removing the valve body from the line.
• Regulatory Compliance: Meets ASSE 1003, CSA B356, and UPC standards for reliable, code-compliant installations.
• Durable Construction: Corrosion-resistant bronze construction suitable for use in potable water systems.

What is the factory pressure setting for the 36-104-02?
While the valve is adjustable from 10 to 35 PSI, it typically comes factory-preset at 25 PSI. Installers can adjust the setting by turning the bolt clockwise to increase or counterclockwise to decrease pressure.

Can this valve be installed in any orientation?
Yes, the 36-104-02 functions effectively in both horizontal and vertical orientations, providing the flow direction follows the arrow cast into the bronze body.

Is the strainer accessible for cleaning?
Absolutely. The high-capacity strainer is designed for easy access, allowing technicians to clear captured debris during routine maintenance cycles to maintain optimal GPM flow rates.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
