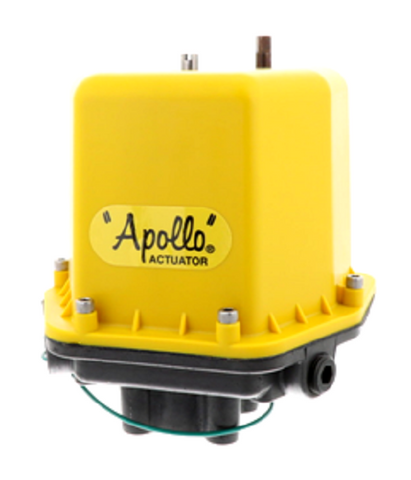

Conbraco AE-400-10 Actuator

The Conbraco AE-400-10 (Apollo AE Series) is a high-performance 120V electric actuator engineered for precise quarter-turn automation of ball valves and industrial dampers. Built with a rugged NEMA 4X die-cast aluminum enclosure and nitrile seals, this unit provides reliable operations in both indoor and outdoor environments. Delivering 400 in-lbs of torque, the AE40010 actuator features a high-visibility position indicator and dual 1/2-inch NPT conduit entries to ensure clean electrical signal separation. The internal permanent-split capacitor motor includes thermal overload protection and heat-treated alloy spur gears for heavy-duty cycling. With a 90-degree travel time of approximately 10 seconds and a 25% duty cycle, this 115V/120V AC valve actuator is a standard choice for contractors requiring a CSA-listed solution for HVACR and fluid control systems. The stainless steel push-and-turn manual override shaft allows for local positioning without power, while the ISO 5211 F07 mounting pattern ensures broad compatibility with standard valve packages.

• Robust Torque Output: Provides 400 in-lbs of breakaway torque to handle high-resistance valves or dampers effectively.
• Environmental Protection: The NEMA 4X enclosure and anodized aluminum body resist corrosion and harsh conditions.
• Easy Installation: Features two 1/2" NPT conduit entrances for simplified wiring and unrestricted mounting orientation.
• Internal Safety: Built-in self-resetting thermal overload protection prevents motor burnout during high-stress operation.
• Manual Control: Integrated stainless steel manual override shaft allows for immediate manual positioning when 120V power is unavailable.

What is the cycle time for the Apollo AE-400-10?
The AE-400-10 actuator completes a full 90-degree rotation in approximately 10 seconds under a 50% load, making it suitable for responsive flow control.

Can the AE40010 be used in outdoor applications?
Yes, its NEMA 4X rating and nitrile gaskets are specifically designed to protect internal components from moisture, dust, and corrosive elements in outdoor installations.

Is the AE-400-10 compatible with standard mounting kits?
It utilizes a standard ISO 5211 F07 drive output, which simplifies the selection of actuator mounting hardware and reduces inventory requirements for multiple valve brands.
