Copeland Comfort Control (White Rodgers) 36G22-254 Gas Valve

36G22-254 is the direct cross of VR8215S1214, 1190417

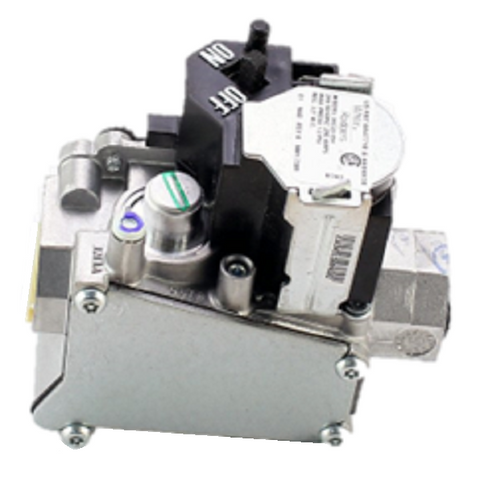

Copeland Comfort Control (White Rodgers) 36G22-254 Gas Valve – 1/2" 24V Natural Gas Valve

The Copeland Comfort Control (White Rodgers) 36G22-254 Gas Valve is a high-performance 1/2" 24V natural gas valve designed for use with hot surface ignition (HSI) and direct spark ignition (DSI) systems. Built for durability and versatility, this genuine OEM component provides reliable gas control in residential and commercial HVAC applications.

Key Features:
– Manufacturer: Copeland Comfort Control / White Rodgers
– Part Number: 36G22-254
– Type: Combination Gas Valve
– Ignition Type: Hot Surface Ignition (HSI) / Direct Spark Ignition (DSI)
– Fuel Type: Natural Gas
– Voltage: 24V
– Connection Size: 1/2" x 1/2" NPT
– Mounting Position: Any (including upside down)
– Approval: CSA Certified

Product Description:
The White Rodgers 36G22-254 Gas Valve from Copeland Comfort Control is part of the versatile 36G Series, engineered to cover a wide range of heating system applications. This compact, fast-opening gas valve combines efficiency, safety, and ease of installation. Featuring quick-connect coil terminals, built-in pressure taps, and tamper-resistant screws, it’s designed for dependable operation under demanding conditions.

Product Highlights:
– Compatible with both HSI and DSI ignition systems
– Compact design for easy installation in tight spaces
– Fast-opening operation for efficient performance
– On-off electric switch for convenient control
– Built-in inlet and outlet pressure taps for easy diagnostics
– Mounts in any position, even upside down
– Tamper-resistant screws and durable construction ensure long service life

Applications:
Ideal for use in furnaces, boilers, unit heaters, and other gas-fired heating systems that utilize hot surface or direct spark ignition controls.

Benefits:
– Ensures safe and reliable gas flow control
– Reduces installation time with quick-connect terminals
– Offers flexible mounting and service convenience
– Meets rigorous CSA safety and performance standards
