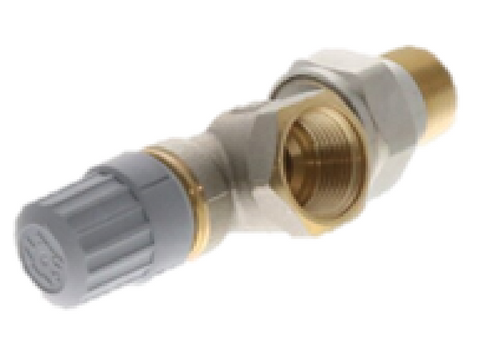

Danfoss 013G-8018 Angle Body

RA2000 3/4" SIDE MT.ANGLE BODY

Danfoss 013G-8018 RA2000 3/4" Side Mount Angle Radiator Valve – FNPT x MNPT Union

The Danfoss 013G-8018 RA2000 Angle Body Valve is a high-quality, nickel-plated radiator valve designed for 2-pipe hydronic heating systems. Built for durability and precise flow control, this 3/4" side-mount angle valve provides reliable performance in residential, commercial, and light industrial heating applications.

Engineered as part of the trusted Danfoss RA2000 series, this valve features a side angle body design with FNPT (female NPT) inlet and MNPT union tailpiece outlet, allowing for secure, leak-resistant installation and easy servicing. With a Kvs value of 2.1 m³/h, it delivers consistent flow performance in systems requiring fixed-capacity radiator control.

The valve is constructed with a nickel-plated finish for corrosion resistance and long service life. It is rated for working pressures up to 10 bar (145 psi) and flow temperatures up to 120°C (250°F), making it suitable for a wide range of hydronic heating systems.

Key Features

• Model: Danfoss 013G-8018

• Series: RA2000

• Valve Type: Fixed capacity radiator valve

• Design: Side mount angle body

• Valve Size: 3/4"

• Connections:

  • Inlet: 3/4" FNPT (Female NPT)

  • Outlet: 3/4" MNPT union tailpiece

• Application: 2-pipe hydronic heating systems

• Finish: Nickel plated for corrosion resistance

• Kvs Value: 2.1 m³/h

• Max Working Pressure: 10 bar (145 psi)

• Test Pressure: 16 bar (232 psi)

• Max Flow Temperature: 120°C (250°F)

• Max Differential Pressure: 1 bar (15 psi)

Product Details

• Product Type: Radiator Valve

• Design Standard: Other permitted

• Presetting: No

• Gross / Net Weight: 0.476 kg

• Volume: 0.854 L

• EAN: 5702420008684

Applications

• Hydronic radiator heating systems

• Residential and commercial hot water heating

• Retrofit or replacement of RA2000 radiator valves

• Systems requiring durable, fixed-flow radiator control

Compliance & Safety

• REACH Candidate List substance: Lead (CAS 7439-92-1)

• California Proposition 65 Warning: Cancer and Reproductive Harm

The Danfoss RA2000 013G-8018 Angle Radiator Valve is a dependable choice for HVAC and plumbing professionals seeking a long-lasting, high-performance radiator valve for efficient hot water heating control.
