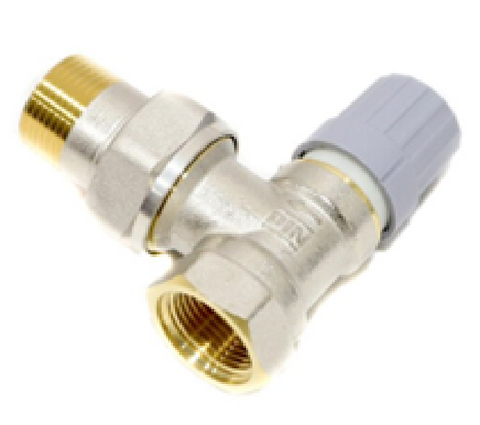

Danfoss 013G-8019 Angle Body

RA2000 3/4" ANGLE BODY

Danfoss 013G-8019 RA2000 3/4" Angle Radiator Valve – FNPT x MNPT Union Tailpiece

The Danfoss 013G-8019 RA2000 Angle Body Valve is a premium-quality radiator valve designed for 2-pipe hydronic heating systems. Engineered for durability and dependable performance, this 3/4-inch angle valve provides efficient hot water flow control in residential, commercial, and light industrial heating applications.

Part of the trusted Danfoss RA2000 series, this valve features a compact angle design with a 3/4" FNPT (female NPT) inlet and 3/4" MNPT union tailpiece outlet, ensuring a secure connection and easier installation or maintenance. With a Kvs value of 2.7 m³/h, the valve supports higher flow capacity compared to side-angle models, making it suitable for systems requiring greater heat output.

The nickel-plated finish enhances corrosion resistance and long-term reliability, even in demanding heating environments. Designed to withstand working pressures up to 10 bar (145 psi) and flow temperatures up to 120°C (250°F), the 013G-8019 is built for consistent performance and system longevity.

Key Features

• Model: Danfoss 013G-8019

• Series: RA2000

• Valve Type: Fixed capacity radiator valve

• Design: Angle body

• Valve Size: 3/4"

• Connections:

  • Inlet: 3/4" FNPT

  • Outlet: 3/4" MNPT union tailpiece

• Application: 2-pipe hydronic radiator heating systems

• Finish: Nickel plated for corrosion resistance

• Kvs Value: 2.7 m³/h (higher flow capacity)

• Max Working Pressure: 10 bar (145 psi)

• Test Pressure: 16 bar (232 psi)

• Max Flow Temperature: 120°C (250°F)

• Max Differential Pressure: 1 bar (15 psi)

Product Details

• Product Group: Radiator Valves

• Presetting: No

• Gross / Net Weight: 424 g

• Volume: 0.854 L

• EAN: 5702420012032

Typical Applications

• Hydronic radiator heating systems

• Residential and commercial hot water heating

• Replacement or retrofit of RA2000 radiator valves

• Systems requiring durable, fixed-flow radiator control

Compliance & Safety

• REACH Candidate List substance: Lead (CAS 7439-92-1)

• California Proposition 65 Warning: Cancer and Reproductive Harm

The Danfoss RA2000 013G-8019 Angle Radiator Valve delivers long-lasting performance, reliable flow control, and corrosion resistance, making it a top choice for HVAC and plumbing professionals seeking a dependable radiator valve solution.
