Danfoss 018F6193 Din Coil

230V 10WATT DIN COIL

018F6193 is the direct replacement for 018Z6193

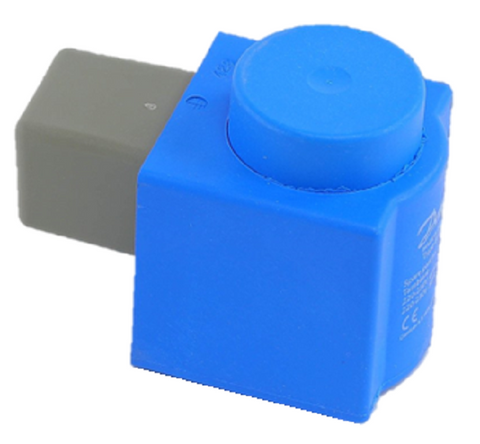

Danfoss 018F6193 Solenoid DIN Coil – BE230CS, 230V AC, 10W, IP20, Clip-On, DIN Spade

The Danfoss 018F6193 DIN Coil (BE230CS) is a high-performance solenoid coil designed for use with a wide range of Danfoss solenoid valves. Operating at 220–230V AC with 50/60 Hz frequency and 10W power consumption, this coil features a DIN Spade electrical connection, clip-on fastening, and is rated IP20 for enclosure protection. Built for continuous duty, it ensures dependable operation in demanding industrial environments.

Key Features:

• Model: 018F6193 / BE230CS

• Voltage: 220–230V AC

• Power: 10W

• Frequency: 50/60 Hz

• Electrical Connection: DIN Spade (6.3 mm x 0.8 mm), 3 spades

• Mounting: Clip-on design

• Actuator Size: 13.5 mm

• Enclosure Rating: IP20

• Insulation Class: Class H (IEC 85 standard)

• Ambient Temperature Range: -40°C to +50°C (-40°F to +120°F)

• Relative Humidity: 0% to 97% (non-condensing)

• Weight: Net 0.279 kg / Gross 0.3 kg

• Compliance & Approvals: CE, EAC, VDE 0580, EN 60730-1

• RoHS/WEEE: Out of scope

• Color: Blue

Compatibility:

Compatible with Danfoss valve series:
EV210B, EV212B, EV220B (6–100), EV222B, EV224B, EV227B, EV250B, EV251B

Applications:

Ideal for use in industrial automation, HVAC, fluid control systems, and OEM assemblies where reliable solenoid valve operation is critical.

⚠️ Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information, visit www.p65warnings.ca.gov

Ensure optimal performance and compatibility by choosing the Danfoss 018F6193 Solenoid Coil—trusted OEM quality for precise control and reliable operation.
