Danfoss 068U1839 TXV

1/4x3/8" Angle 5'Cap R134 TXV

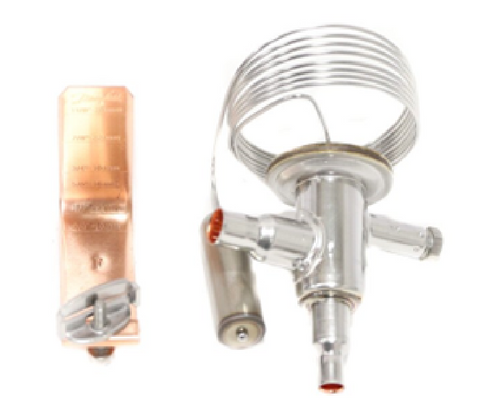

Danfoss 068U1839 Thermostatic Expansion Valve (TXV) – 1/4 x 3/8" Angle, R134a/R513A

Optimize your refrigeration and HVAC systems with the Danfoss 068U1839 TXV, a high-performance thermostatic expansion valve designed for precision control and reliable operation. Compatible with R134a and R513A refrigerants, this angle-style valve ensures efficient system performance across a wide temperature range.

Key Features & Specifications:

• Type: TUB Thermostatic Expansion Valve

• Connection: 1/4" inlet x 3/8" outlet, soldered (ODF)

• Flow Direction: Single-flow, angleway, laser-engraved arrow

• Capillary Tube: 59 in (1500 mm)

• Temperature Range: -40°C to 10°C (-40°F to 50°F)

• Pressure Equalization: Internally equalized

• Max Working Pressure: 34 bar / 500 psig

• Orifice Capacity: 1 kW / 0.28 TR

• Superheat: Adjustable, Static Superheat 4°C (7.2°F)

• Body Material: Stainless steel, bi-metal (steel/copper) connections

• Certifications: UL, EAC, China RoHS, EU RoHS compliant

• Accessories Included: Bulb strap

Why Choose Danfoss 068U1839 TXV:

• Ensures precise refrigerant flow to improve efficiency and system stability.

• Durable stainless steel construction for long-term reliability in commercial and industrial applications.

• Easy installation with soldered connections and clearly marked flow direction.

• Designed for R134a and R513A refrigerants, making it versatile for modern HVAC systems.

Applications:
Ideal for refrigeration, air conditioning, and heat pump systems where accurate control of refrigerant flow is critical for performance, energy efficiency, and system longevity.

Danfoss 068U1839 TXV is your go-to solution for reliable, adjustable, and high-efficiency temperature control in commercial and residential HVAC systems.
