Danfoss MTZ160-4VI Compressor

R404A, R407C, R134A, R407F Reciprocating Compressor, Polyester Oil, 380-400 Volt 3 Phase 50 Hz / 460 Volt 3 Phase 60 Hz, R134a 107631 Btu/h, (Btu/h based on Evaporator Temperature 45 F, Condenser Temperature 130 F, SuperHeat 20 F, SubCooling 15 F) R404A / R507A 87421 Btu/h, (Btu/h based on Evaporator Temperature 20 F, Condenser Temperature 120 F, SuperHeat 20 F, SubCooling 0 F) 1 3/4" Rotolock Suction with 1 1/8" ODF (sweat) Sleeve, 1 1/4" Rotolock Discharge (Liquid) with 3/4" ODF (sweat) Sleeve, 3/8" npt Oil Equalization Connection

MTZ160-4VI is identical to MTZ160HW-4AVE

Danfoss MTZ160-4VI Reciprocating Compressor – R404A, R134a, R407C, R407F, 3-Phase, Hermetic HVAC/R Compressor

The Danfoss MTZ160-4VI (Model: MTZ160HW4AVE) is a high-performance hermetic reciprocating compressor engineered for medium-temperature commercial refrigeration applications. Designed for compatibility with multiple refrigerants including R404A, R407C, R134a, R407F, R448A, R449A, R452A, R513A, and R407A, this 4-cylinder compressor delivers exceptional efficiency, reliability, and durability in demanding HVAC/R systems.

🔧 Key Features:

• Refrigerant Compatibility: R404A, R407C, R407F, R134a, R407A, R448A, R449A, R452A, R513A

• Compressor Type: Hermetic reciprocating, fixed speed

• Motor Power Supply: 380–400V 3-Phase 50Hz / 460V 3-Phase 60Hz

• Oil Type: Polyester (175PZ), 3.9L charge

• Cooling Capacity:

  • R134a: 107,631 BTU/h @ 45°F evap / 130°F cond

  • R404A / R507A: 87,421 BTU/h @ 20°F evap / 120°F cond

• Rotolock Connections:

  • Suction: 1 3/4" with 1 1/8" ODF sleeve

  • Discharge: 1 1/4" with 3/4" ODF sleeve

• Oil Equalization Port: 3/8" NPT

• Internal Motor Protection: Overload protection included

📦 Specifications:

• Model: MTZ160-4VI / MTZ160HW4AVE

• Gross Weight: 74.75 kg

• Net Weight: 71 kg

• Dimensions: 540 mm height × 352 mm diameter

• Voltage Range: 380–415V / 460V, 3Ph, 50/60Hz

• Speed: 2900 rpm @ 50Hz, 3500 rpm @ 60Hz

• LRA: 130 A | MCC: 36 A

• Connection Type: Rotolock with ODF sleeves

• IP Rating: IP54

• Factory Pressure Test: HP 25 bar / LP 25 bar

• Max Working Pressure: HP 29.4 bar / LP 22.6 bar

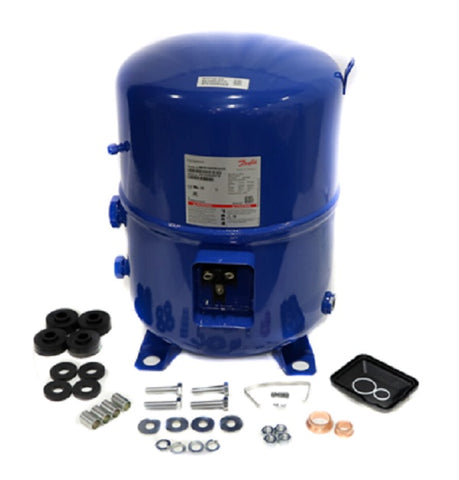

• Mounting Kit Included: Grommets, bolts, nuts, sleeves, and washers

• Certifications: CE, UL evaluated, RoHS compliant (with exemptions), China RoHS

✅ Applications:

Ideal for medium-temperature commercial refrigeration systems such as supermarket display cases, cold rooms, process chillers, and walk-in freezers.

⚠️ Regulatory Notice:

• California Prop 65 Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

• EPA Compliance: For installations using U.S. EPA restricted refrigerants, this compressor may only be used for servicing existing equipment.

Upgrade your refrigeration system with the trusted performance of the Danfoss MTZ160-4VI — precision-engineered for efficiency, multi-refrigerant flexibility, and long-term reliability in demanding commercial environments.

Warranty policy for this compressor is one year from purchase and is only issued if an exact replacement compressor is ordered from our same vendor.
