Danfoss SM115-4QAI Scroll Compressor

460v3ph 115200btuR22ScrollComp

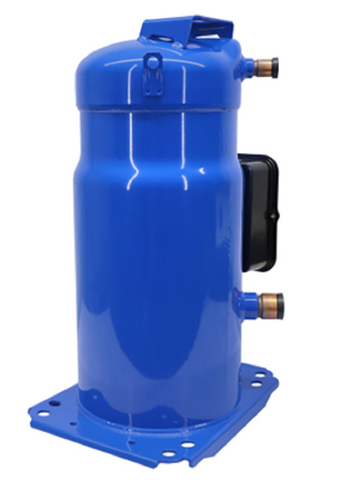

Danfoss SM115-4QAI Scroll Compressor – 460V 3-Phase, 115,200 BTU, R-22 Refrigerant

Upgrade your air conditioning system with the Danfoss SM115-4QAI Scroll Compressor, a reliable and efficient compressor designed for heavy-duty HVAC applications. This OEM-quality scroll compressor supports R-22 refrigerant and is engineered for superior performance and long-lasting durability.

Product Highlights:

• Model: SM115-4QAI (After Sale: SM115S4QC)

• Voltage: 380-415V / 3 Phase / 50Hz and 460V / 3 Phase / 60Hz

• Cooling Capacity: 115,200 BTU (24,000 BTU nominal)

• Refrigerant: R-22

• Compressor Type: Scroll, fixed speed

• Connection Type: Brazed connections

• Dimensions: Diameter 253 mm, Height 579 mm

• Weight: Gross 83 kg, Net 78 kg

• Oil Type: Mineral oil, 3.8 L capacity

• Maximum Operating Pressure: High Side 30.2 bar, Low Side 25 bar

• Rotation Speed: 2900 rpm at 50Hz, 3500 rpm at 60Hz

• Safety & Compliance: CE evaluated, UL evaluated, China RoHS compliant, EU RoHS exemptions applied

• Additional Features: Internal thermostat motor protection, IP54 protection with cable gland

Why Choose Danfoss SM115-4QAI?

• High Efficiency: Scroll compressor technology ensures smooth, quiet operation with excellent energy efficiency.

• Durability: Built for demanding HVAC environments with robust construction and advanced materials.

• Compatibility: Ideal for R-22 air conditioning systems, designed to meet industry standards.

• Complete Packaging: Includes mounting kit with grommets, bolts, nuts, sleeves, washers, and initial oil charge for easy installation.

• Trusted OEM Quality: Manufactured under stringent quality controls for reliable performance and longevity.

Applications:

Perfect for commercial and residential air conditioning units requiring R-22 refrigerant compressors, this Danfoss scroll compressor provides consistent cooling capacity and operational reliability.

Safety Notice:
⚠️ WARNING: This product contains chemicals known to the State of California to cause cancer and reproductive harm. For more information, visit www.p65warnings.ca.gov.

Keep your HVAC system running at peak performance with the Danfoss SM115-4QAI Scroll Compressor — a trusted solution for professional-grade air conditioning applications.

Warranty policy for this compressor is one year from purchase and is only issued if an exact replacement compressor is ordered from our same vendor.

This item is not eligible for free shipping and must be shipped via trucking. Please contact us for a freight quote.
