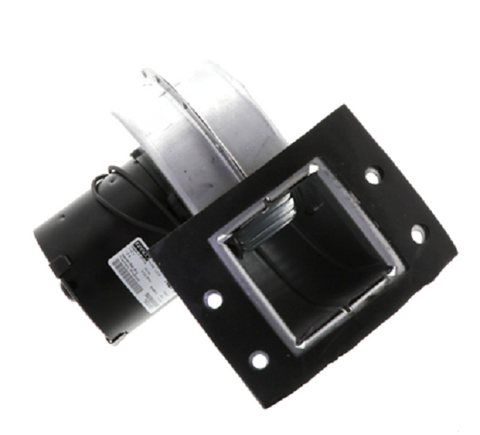

Detroit Radiant TP-55 Inducer Assembly

The Detroit Radiant TP-55 Inducer Assembly is a critical combustion component designed specifically for Re-Verber-Ray and Detroit Radiant low-intensity infrared tube heaters. This centrifugal blower motor serves as the primary draft inducer, ensuring the proper evacuation of flue gases through the heat exchanger for safe and efficient operation. Built to handle high-temperature environments, the TP-55 draft inducer maintains the precise pressure differential required by the vacuum switch to allow the burner sequence to continue. As a direct OEM replacement part, it guarantees correct mounting hole alignment and electrical connector compatibility, reducing downtime during service calls. When diagnosing infrared heater ignition failure or noisy operation, replacing a seized or imbalanced TP-55 blower assembly is essential for restoring the vacuum pressure necessary for consistent combustion. This assembly is engineered for durability in demanding industrial heating applications where reliable venting performance is non-negotiable.

• Direct OEM Compatibility: Engineered specifically for Re-Verber-Ray TP series infrared tube heaters, ensuring a drop-in fit.
• Optimized Airflow: Precision-balanced impeller wheel minimizes vibration and extends the lifespan of the motor bearings.
• Critical Safety Function: Provides necessary static pressure to engage the pressure switch and maintain the combustion cycle.
• High-Temperature Durability: Constructed with materials designed to withstand the thermal stress of sealed combustion venting.

What are the signs that a TP-55 Inducer Assembly needs replacement?

Typically, a failing TP-55 will exhibit audible bearing noise, a complete failure to spin, or an inability to generate enough vacuum to close the air pressure switch, resulting in a lockout code.

Is the TP-55 compatible with all Re-Verber-Ray models?

The TP-55 is specific to certain low-intensity tube heater series. Always verify the model and serial number of the unit to ensure the inducer motor matches the specific BTU input and venting requirements of the equipment.

Does this assembly include the necessary mounting gaskets?

It is best practice to inspect the flange gasket during removal; if the gasket is compressed or brittle, it should be replaced alongside the TP-55 to prevent flue gas leakage at the venting connection.
