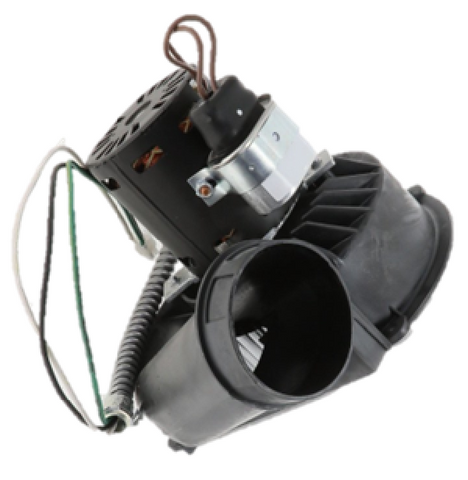

Utica-Dunkirk 240009011 Inducer Assembly

The Utica-Dunkirk 240009011 Inducer Assembly is a critical OEM component designed for high-performance draft induction in gas-fired hot water boilers and furnaces. Engineered for 120V operation at a fixed speed of 3450 RPM, this draft inducer motor ensures the precise evacuation of combustion byproducts, maintaining the necessary static pressure for safe ignition and consistent thermal efficiency. This complete kit includes a factory-spec replacement blower assembly and the essential inducer motor gasket to prevent flue gas leakage and ensure a pressure-tight seal against the heat exchanger.

As a genuine Utica Dunkirk part, the 240009011 is built to match original equipment tolerances, reducing vibration and noise while extending the service life of the heating system. For technicians servicing ECR International brands such as Utica, Dunkirk, and Pennco, this assembly provides a direct drop-in replacement that retains UL and CSA safety certifications. Utilizing precision ball bearings and a thermally protected motor, it is designed to handle the high-static demands of induced draft systems, preventing common pressure switch trip-outs and operational lockout codes.

Key Benefits for HVAC Professionals

• Direct OEM Compatibility: Engineered specifically for Utica/Dunkirk induced draft boilers, ensuring exact mounting and Molex connector alignment.
• Optimized Draft Performance: The 3450 RPM blower wheel provides the high-velocity airflow required to clear the heat exchanger for reliable ignition.
• Complete Installation Kit: Includes the 240009011 gasket, eliminating the need to source separate sealing components and ensuring a leak-free repair.
• Durable Construction: Features a rugged blower housing and a thermally protected 120V inducer motor designed for continuous duty during peak heating cycles.

Common Questions

What models are compatible with the Utica-Dunkirk 240009011?
This assembly is commonly used in ECR International series boilers, including the GWB8-042IE-2, GWB8-075IE-2, and GWB8-112IE-2 models. Always verify compatibility with the specific series and part number on the existing housing.

Does this unit come with the mounting gasket included?
Yes, the 240009011 is a complete inducer assembly that includes the specialized gasket required to secure the blower to the flue collector box.

Can this motor be used to fix a frequent pressure switch code?
If the existing inducer motor is failing to reach the necessary 3450 RPM or the blower wheel is fouled, it may fail to close the pressure switch. Replacing the assembly with this OEM unit often resolves draft-related lockout issues.
