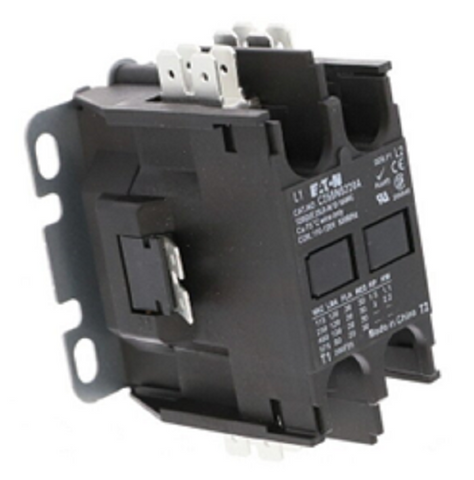

Eaton C25BNB220A (45CG20AF) Contactor

Electrical, Contactor, 110/120Vac 50/60Hz Coil Voltage, 2 Pole, 20 Amps, Open Type Enclosure, Non-Reversing Definite Purpose Compact Contactor with Metal Mounting Plate

Same specs as: 45CG20AF

Eaton C25BNB220A (45CG20AF) 2-Pole Definite Purpose Contactor – 20 Amp, 120V Coil

Boost the reliability of your HVAC, refrigeration, or industrial equipment with the Eaton C25BNB220A (45CG20AF) Contactor. Engineered for dependable performance, this compact, non-reversing definite purpose contactor is ideal for a wide range of electrical control applications.

Key Features

• Coil Voltage: 110/120 VAC, 50/60 Hz for versatile operation

• Poles & Amperage: 2-Pole design, 20 Full-Load Amps (F/L), 30 Resistive Amps (Res.)

• Construction: Open-type enclosure with a durable metal mounting plate

• Low-Profile Design: Compact body with a low-VA coil to reduce power consumption

• Ease of Installation: Equipped with box lugs and quick-connect terminals side-by-side for fast wiring

• Enhanced Protection: Sealed housing blocks contaminants and minimizes operational noise

• Safety Add-On: Integrated arc cover for additional safety

Applications

Perfect for HVAC systems, refrigeration units, pumps, compressors, and light industrial machinery, the Eaton C25BNB220A provides long-lasting, efficient control in demanding environments.

Upgrade or replace your electrical contactor with this UL-recognized Eaton C25BNB220A 2-Pole, 20-Amp Contactor, designed for smooth operation and simplified maintenance on any commercial or residential platform.
