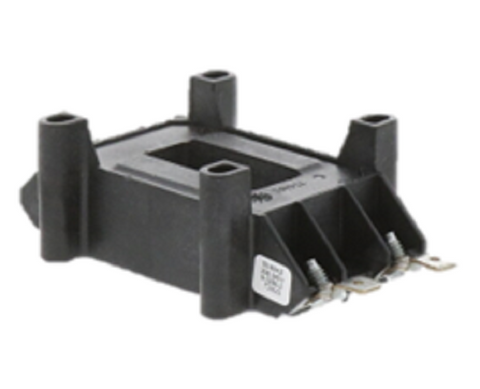

Eaton Cutler-Hammer 9-3256-2 Replacement Coil

The Eaton Cutler-Hammer 9-3256-2 is a professional-grade 208/240V replacement coil engineered specifically for maintenance and repair of definite purpose contactors. As a critical motor control coil component, this 65 mm renewal part is designed to restore full operational integrity to Eaton 4-pole contactors. It supports a broad range of amperage ratings, including 25A, 30A, 40A, 60A, and 75A configurations, ensuring versatile compatibility across various HVACR and industrial motor control panels. By utilizing authentic Eaton renewal parts, technicians can maintain the original equipment specifications without compromising system performance. This 208-240 VAC coil provides the exact physical dimensions and electromagnetic properties required for a seated fit and reliable magnetic actuation, preventing common issues like excessive hum or contact chatter often found with inferior aftermarket alternatives.

Key Benefits:

• Precise OEM Compatibility: Direct replacement for Catalog Number 9-3256-2, ensuring a perfect mechanical fit in Eaton definite purpose coils.
• Dual Voltage Rating: Engineered for stable performance across 208V and 240V power supplies, accommodating standard industrial electrical service.
• Broad Application Range: Validated for use with 65 mm frame sizes, covering both 25-40A and 60-75A contactor bodies.
• Enhanced Durability: Constructed to withstand high-cycle operations in demanding motor control environments.
• Standardized Form Factor: Features 2" L x 2.25" W x 3.25" H dimensions for straightforward installation in tight control enclosures.

Common Questions:

Will this coil fit my specific contactor?
This coil is designed for Eaton 4-pole contactors within the 25A to 75A range that utilize a 65 mm frame. Always verify your current coil carries the UPC 786676042703 or part number 9-3256-2 before installation.

Can I use this for 120V or 480V applications?
No, this specific part is rated strictly for 208-240 VAC. Applying incorrect voltage will lead to coil failure or insufficient magnetic force to pull in the contacts.

Does this include the contactor hardware?
This is a replacement coil only. It is intended for field replacement within your existing Eaton motor control assembly to extend the service life of the device.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
